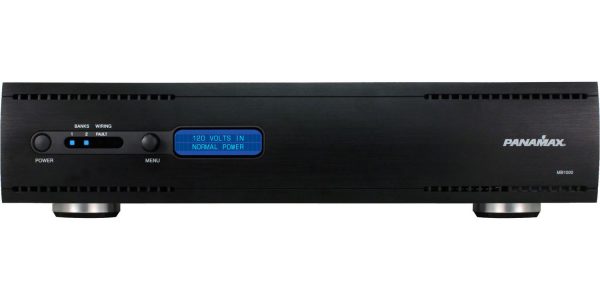

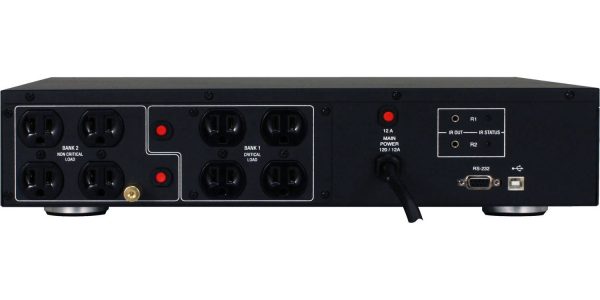

1000VA Rack Mount UPS

1000VA, Fully Programmable, Uninterruptible Power Supply, Voltage Regulator & Power Conditioner


MB1000 prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. Shuts off projection equipment via IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off.


  • Surge Protection and AVM
  • Voltage Regulation
  • LiFT Noise Filtration
  • Dual Learning IR Output Controls
  • RS-232 with Open Source Code Protocol
  • Fully Programmable
  • Power Management Software
  • USB Interface
  • Critical Load Management
  • USB Cord Included
  • RS-232 Pin Cable Included
  • Rack Mounting Kit


UPS Output Voltage: 120 ±5V, Simulated Sine Wave

Other Specifications

  • FamilyRack Mount
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Number of Isolated Banks0
  • Outlet DescriptionsAll 8 outlets surge protected, linearly filtered, and backud up
  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)LCD Displays status and menu navigation items
  • Front Media Light(s)No
  • ControlRemote control through RS-232 serial port
  • AC Power Cord10 ft, captive
  • Dimensions17″ W (19″ w/ rack ears) x 13″ D x 3.5″ H (4″ tall with feet installed)
  • Weight36 lbs.
Battery Backup
  • Input Frequency57 – 63 Hz
  • Regulation Capture Range99 – 135V (Sensitive Mode)

    94 – 142V (Standard Mode)
  • Output Frequency60 Hz ± 1%
  • UPS Output Capacity1000VA, 600W @ 0.6pf
  • Regulation Output Range120V ± 5% (Sensitive Mode)
    120V ± 10% (Standard Mode)
  • UPS Backup Time (Full Load)3 minutes
  • Transfer Time < 10ms
AC Protection
  • AC Protection TechnologyNon-sacrificial SMP (Series Multi-Stage Protection)
  • Under-Voltage Shutoff90V ± 5V
  • Over-Voltage Shutoff150V ± 5V (fast rise)
    132 ± 5V (slow rise)
  • Maximum Current Rating12 (Amps)
  • Filtration TechnologyLinear Filtering Technology (LiFT)
  • Filtration Rating10 dB @ 10kHz
    40 dB @ 100 kHz
    50 dB @ 500kHz
Shipping Info
  • Length22.3 (Inches)
  • Width17.6 (Inches)
  • Height9.3 (Inches)
  • Weight37.3 (Lbs)
  • Unit of MeasureEach
  • UPC050616008518
  • Master Pack Qty28


3 Year Product Warranty

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

2 Year Battery Warranty

Panamax warrants to the purchaser of this uninterruptible power supply, for a period of two (2) years from the date of purchase, that the batteries shall be free of defects in design, material, or workmanship, and Panamax will replace any defective battery.


Panamax audio video products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Audio Video Internet Dealers have sufficient expertise to insure warranty compliant installations.
