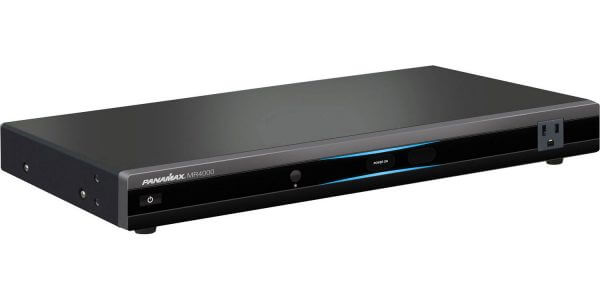

MR4000

MR4000 Power Management

8 Outlet Power Management, specifically designed and engineered to provide protected and filtered power to your home theater system.

Description

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

Features

  • Eight (8) Protected & Filtered Power Outlets
  • Exclusive Automatic Voltage Monitoring (AVM)
  • Protect or Disconnect™ Technology
  • Panamax Level 2 Noise Filtration
  • Antenna, Cable, or Satellite and LAN Signal Protection
  • 8 ft. Power Cable with Low Profile Plug

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 400V
Single Pulse Energy Dissipation: 1350 Joules
Response Time: < 1ns
Peak Impulse Current: 52,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100bT
LAN – Clamping Level: 50V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections : Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes

Other Specifications

General
  • FamilyMR Series
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Number of Isolated Banks0

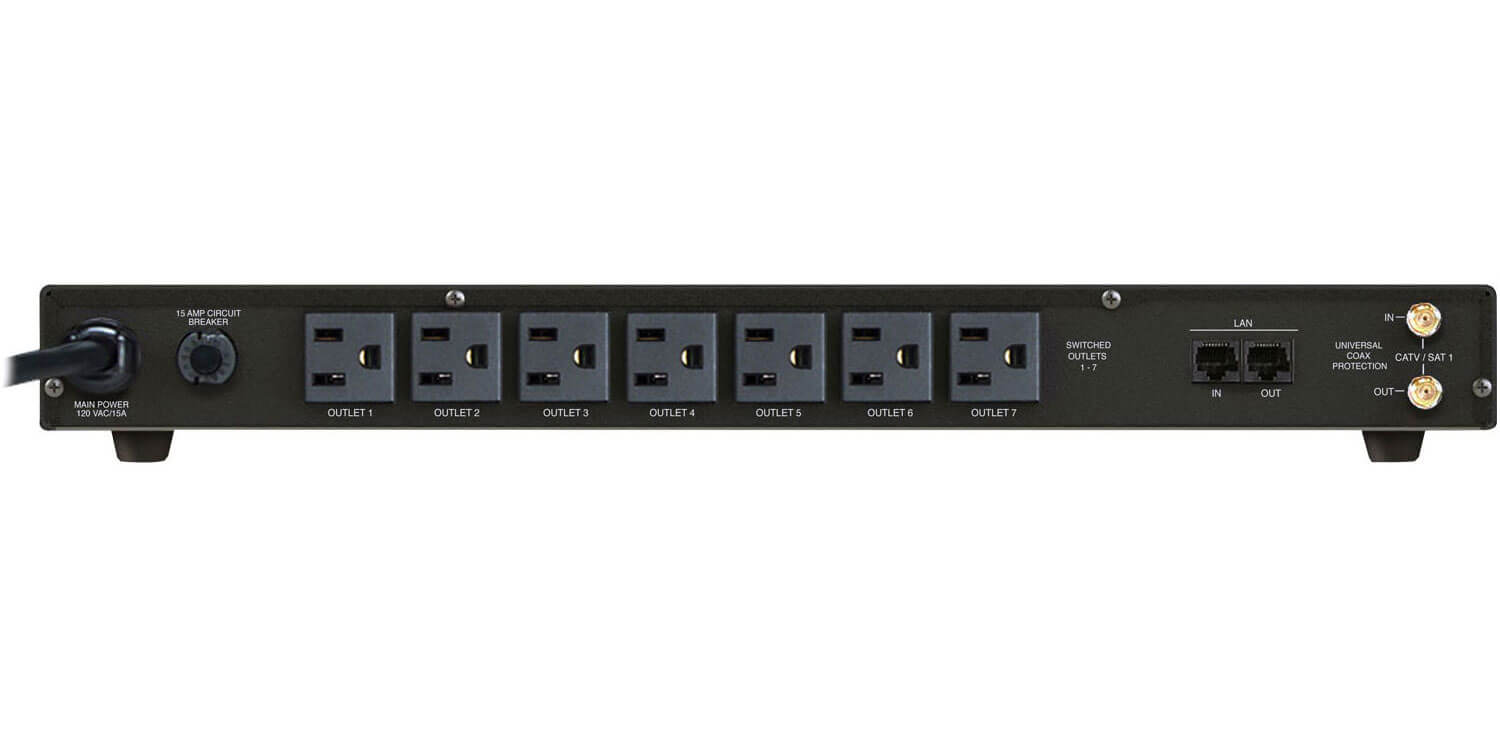

  • Outlet Descriptions

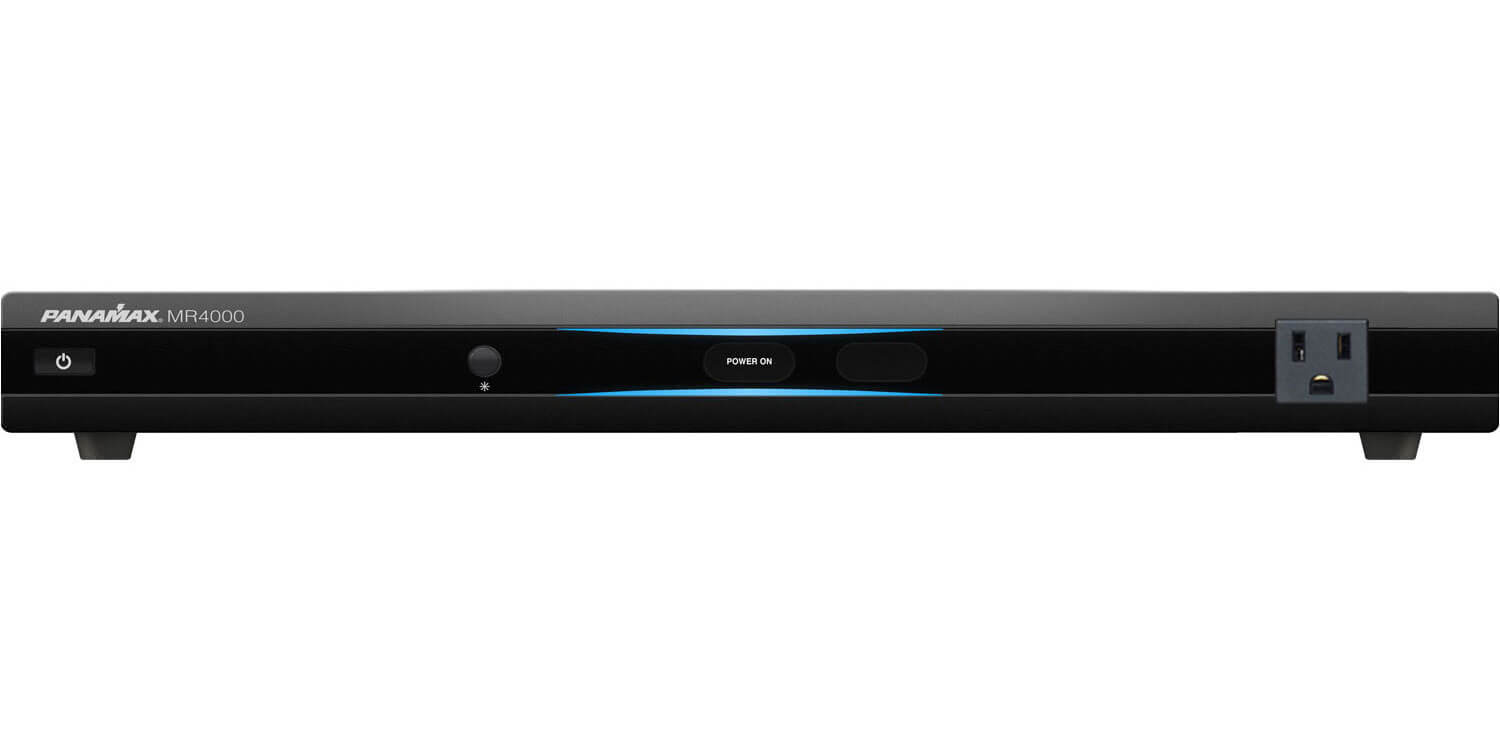

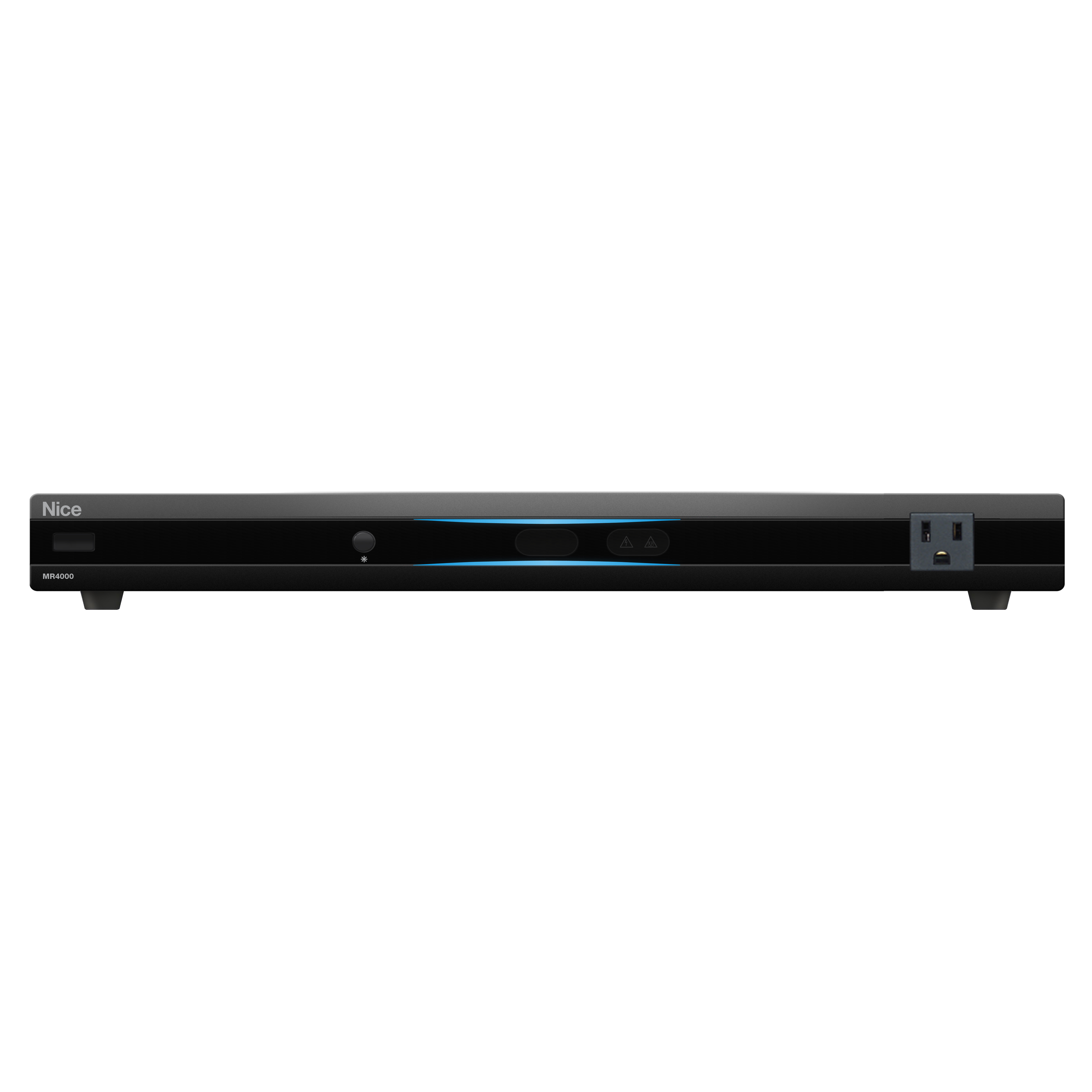

    1 (filtered outlet, front panel)

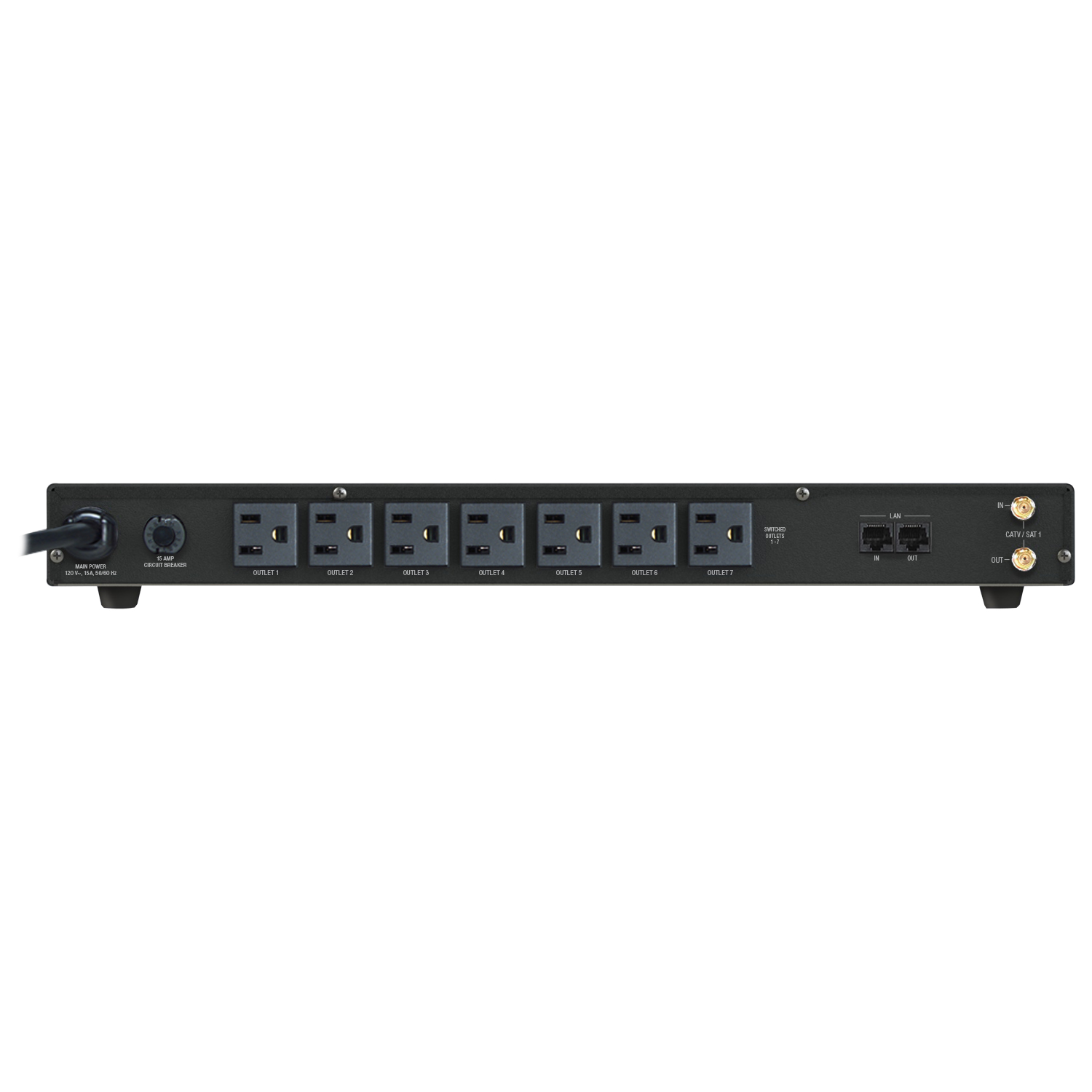

    7 (filtered outlets, rear panel)

  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)No
  • Front Media Light(s)No
  • ControlOn/Off control to all outlets through front panel power button.
  • Voltage RegulationNo
  • CompliancecCSAus
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord8 ft. captive, with low profile plug
  • Dimensions17"W x 6"D x 1.75" H, 2.19" H with feet
  • Weight6.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Under-Voltage Shutoff95V ± 2V
  • Over-Voltage Shutoff140V ±4V
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating

    All Outlets:

    -30dB min. @ 100kHz

    -55dB min. @ 250kHz

    -45dB min. @ 500kHz

    Max filtration: -60dB @ 300kHz

  • Signal Line Protection1 LAN, 1 Cable/Satellite
Shipping Info
  • Length19.6 (Inches)
  • Width12.1 (Inches)
  • Height5.2 (Inches)
  • Weight6.75 (Lbs)
  • Unit of MeasureEach
  • UPC050616008921
  • Master Pack Qty4
Other Specifications
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)400V
  • Single Pulse Energy Dissipation1350 Joules
  • Response Time < 1ns
  • Peak Impulse Current52,000 Amps
  • LAN – Wires Protected8-Wires
  • LAN – Compatibility10/100bT
  • LAN – Clamping Level50V
  • Coax – ShieldedYes
  • Coax – Insertion Loss < 0.5 dB
  • Coax – HD 1080 i/p ReadyYes
  • Coax – Frequency Range0 MHz – 2.2 GHz
  • Coax – Connections Female “F”, Gold Plated
  • Coax – Clamping Level75V
  • Coax – BidirectionalYes
Proposition 65 Warning
  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

3 YEAR PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to ensure warranty compliant installations.
