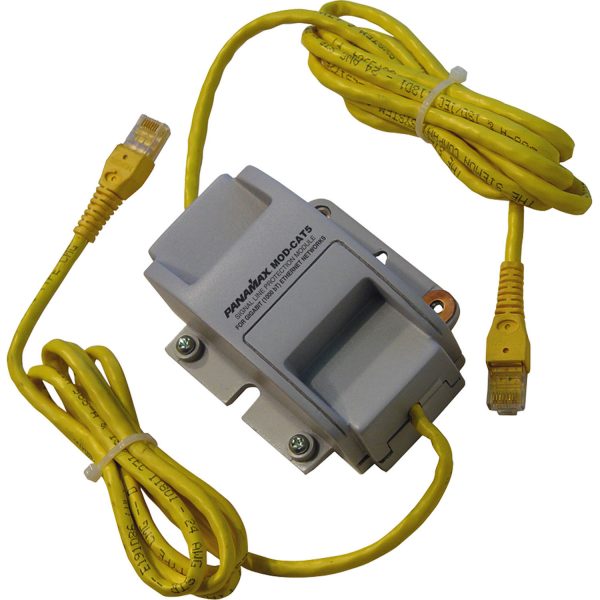

MOD-CAT5

Module, CAT5 Ethernet

For Gigabit (1000 bT) Ethernet Networks.

Description

For Gigabit (1000 bT) Ethernet Networks

Features

Designed for high-speed data applications. Networks include: CAT 5, fast Ethernet, ATM, and other highspeed active transport devices up to 100 MHz per pair.

Specifications

Network Protection
Wires Protected: Pins 1-8
Suppression Modes: Differential & Common Ground
Speed: < 100 Mh/s per pair
Connectors: RJ-45
Clamping Level: 19V @ 1mA
CAT5E Compliant: Yes
Capacitance: <6pf

Other Specifications

General
  • FamilySignal Protection Modules
  • Line Voltage120 (Volts)
  • Number of Outlets0
  • ComplianceCAT5E
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Weight.45 lbs
AC Protection
  • Initial Clamping Level19V @ 1mA
Filtration
  • Filtration TechnologyN/A
  • Signal Line Protection1 LAN
Shipping Info
  • Length2 (Inches)
  • Width4 (Inches)
  • Height5.25 (Inches)
  • Weight0.55 (Lbs)
  • Unit of MeasureEach
  • UPC050616007740
  • Master Pack Qty24

Warranty

CONNECTED EQUIPMENT PROTECTION POLICY

These signal line protection modules do not provide a Connected Equipment Protection Policy. When properly installed with a compatible Panamax AC base unit, the base unit’s Connected Equipment Protection Policy remains valid.

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax signal line protection module, that the unit shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
