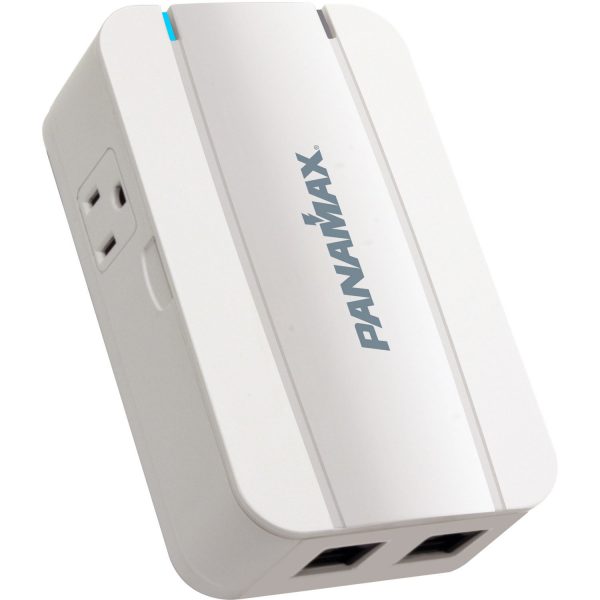

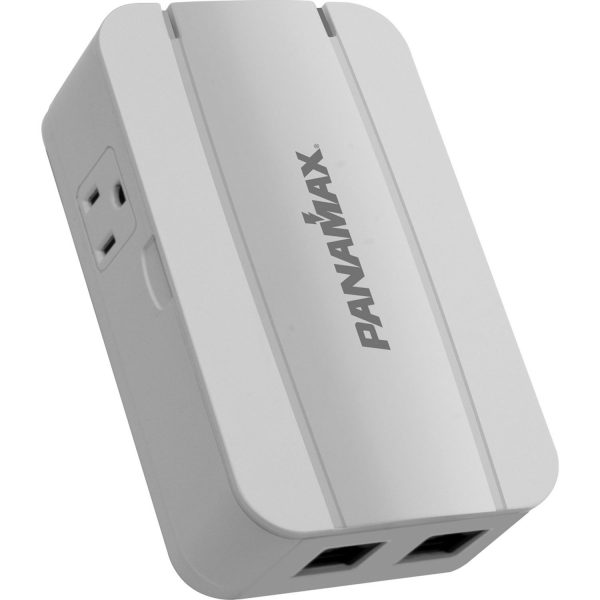

MD2-TL

2 Outlet Direct Plug-In Surge Protector with Tel/Lan

AC & Tel/LAN Protection for Home and Office Electronics.

Description

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

LAN/Telco Protection

Protects equipment from electrical surges that travel over low voltage LAN/Tel lines.

$100,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $100,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.

Features

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry

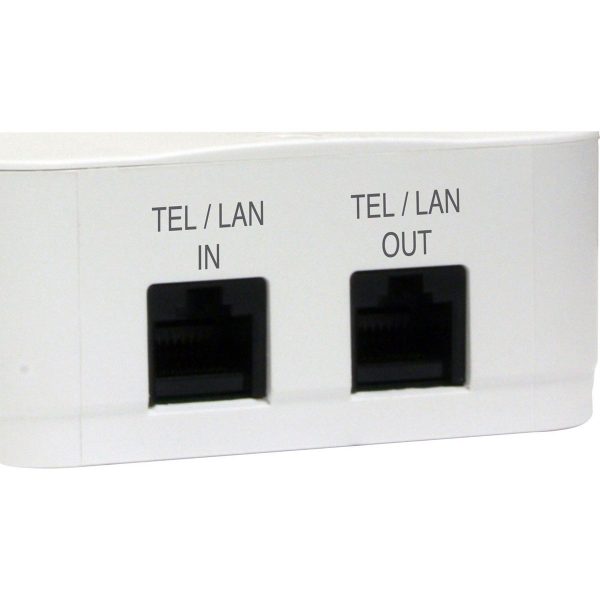

  • In/Out Telco/LAN Connectors.
  • Removable, paintable cover ensures seamless fit with any décor.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile – Only 1.5 inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1350 Joules
Response Time: <1 ns
Peak Impulse Current: 60,000 A
Nominal Discharge Current: 3,000 A

LAN Specifications
Wires Protected: Pins 1, 2, 3, & 6
Suppression Modes: Differential & Common Ground
Connectors: RJ-45 Shared with Telco
Compatibility: 10/100 BASE-T
Clamping Level: 7V

Telco Specifications
Wires Protected: 2 wire, 1 pair (4,5)
Suppression Modes: Metallic & Longitudinal
Fuseless/Auto-Resetting: Yes
Connectors: RJ-45 Shared with LAN
Clamping Level: 260V
Capacitance: 30 pf (approx.)

Other Specifications

General
  • FamilyDirect Plug Ins
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet DescriptionsBoth outlets filtered and surge protected
  • ComplianceC-UL (UL standard #1449)
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Dimensions3.25" W X 1.625" D X 5.25" H
  • Weight0.65 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 kHz – 1 MHz
  • Signal Line Protection1 LAN/Tel
Shipping Info
  • Length4.8 (Inches)
  • Width3 (Inches)
  • Height6.1 (Inches)
  • Weight1 (Lbs)
  • Unit of MeasureEach
  • UPC050616008761
  • Master Pack Qty24

Warranty

$100,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to ensure warranty compliant installations.
