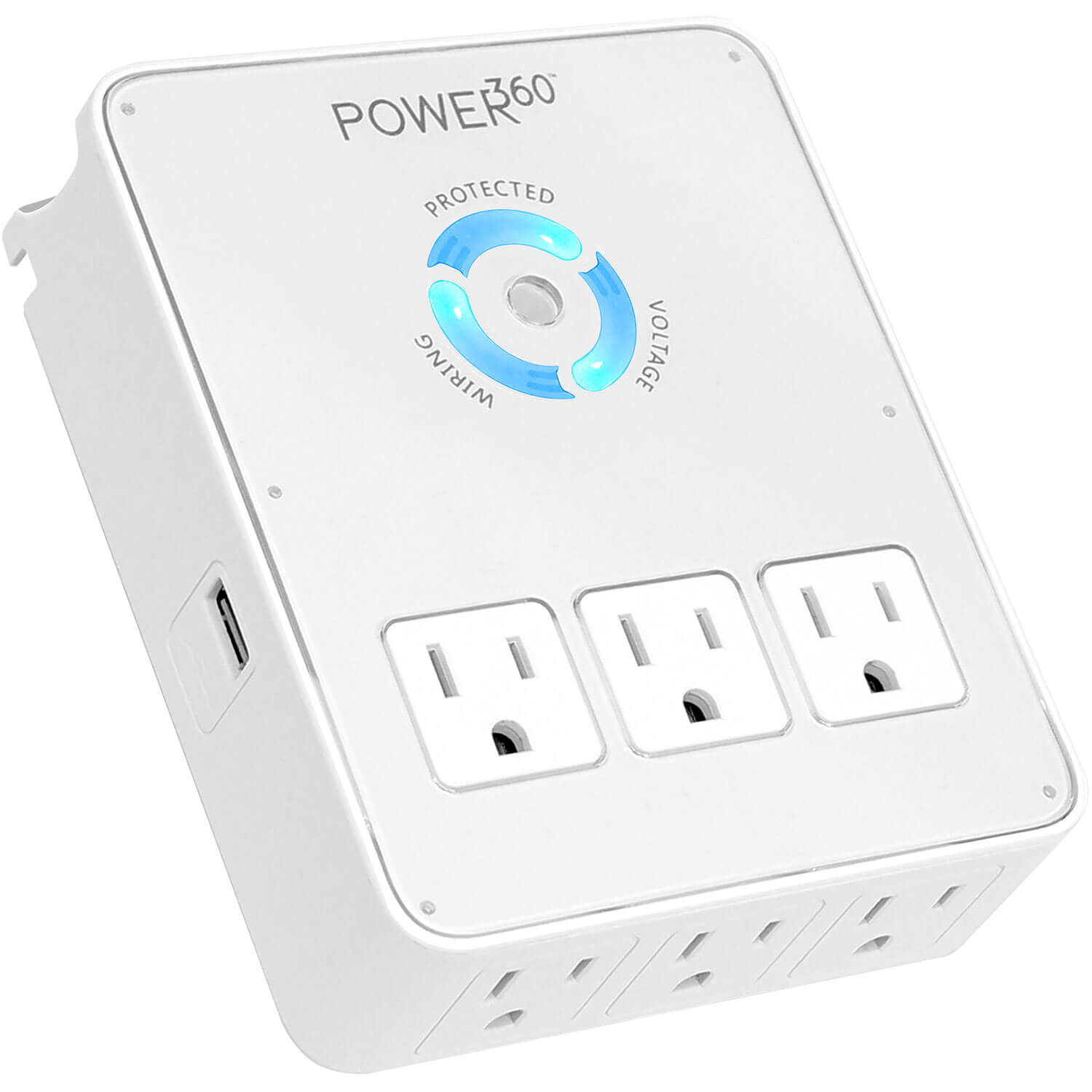

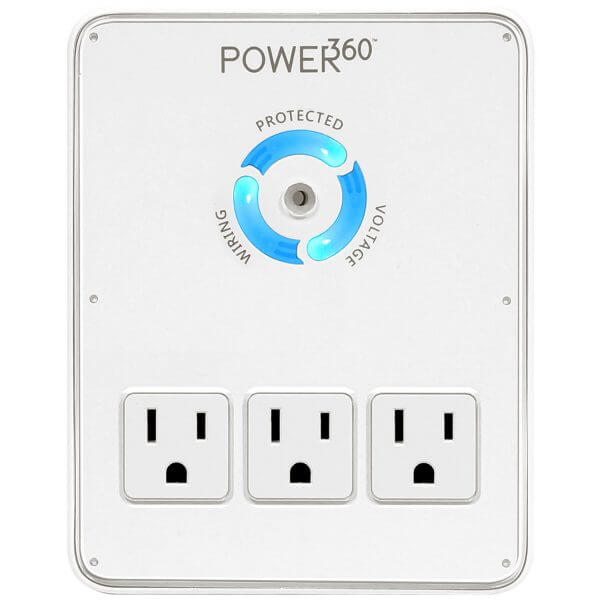

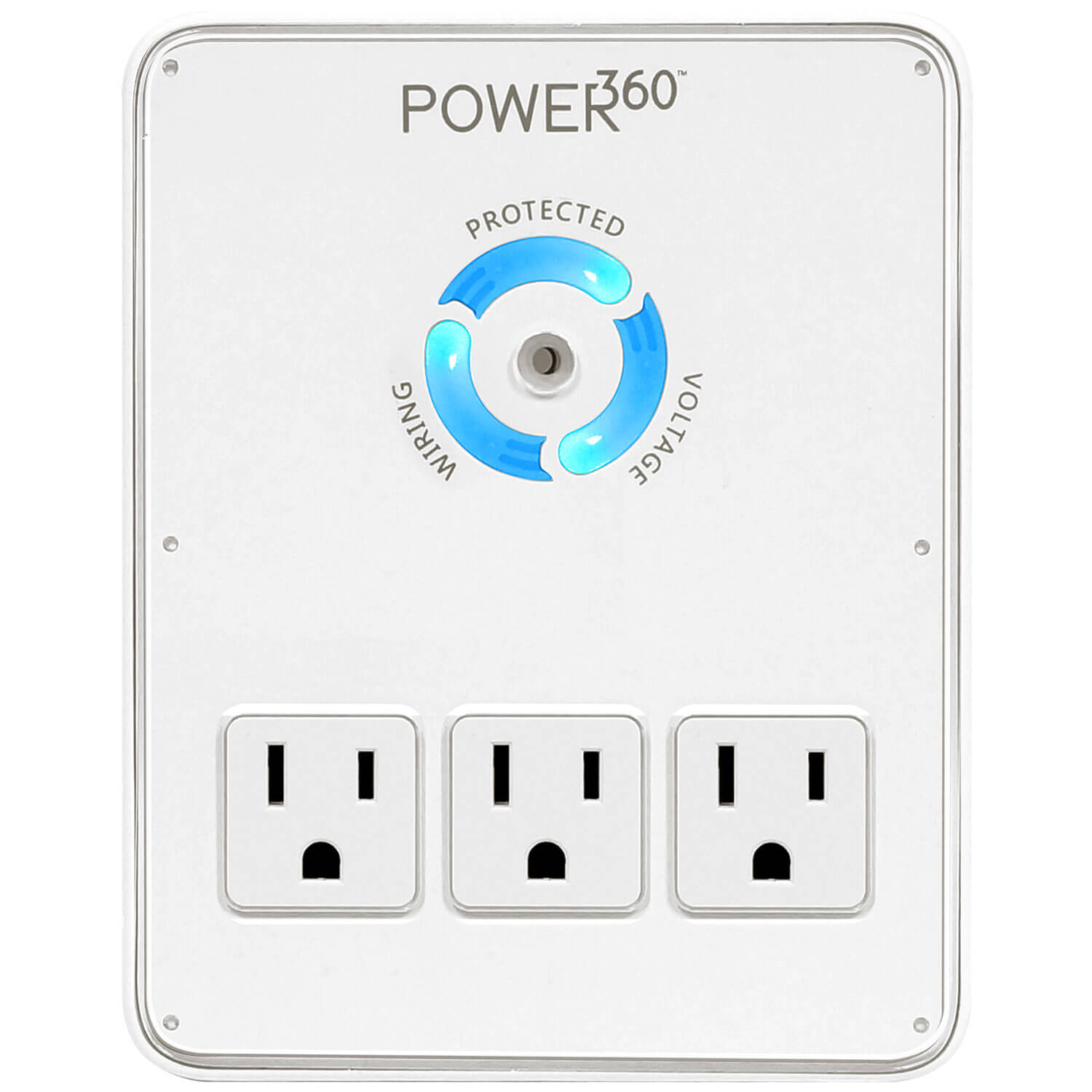

P360-DOCK

Power360 6 Outlet Wall Tap/Charging Station

6 Outlet Direct Plug-In Surge Protector with 2 USB Charging Ports and a Place to Rest a Phone and/or Tablet During Charging.

Description

  • Best in class protection with our over/under voltage protection technology – the best protection ever available at this price point!
  • Convenient & innovative USB charging with a spot to rest a phone and/or tablet.
  • Circle of Protection indicator offers peace of mind at a glance with protection, voltage and wiring status lights.
  • Ideal for home entertainment.

Features

  • Best in class protection with Protect-Or-Disconnect + SmartGuard active over/under voltage protection with auto reset.

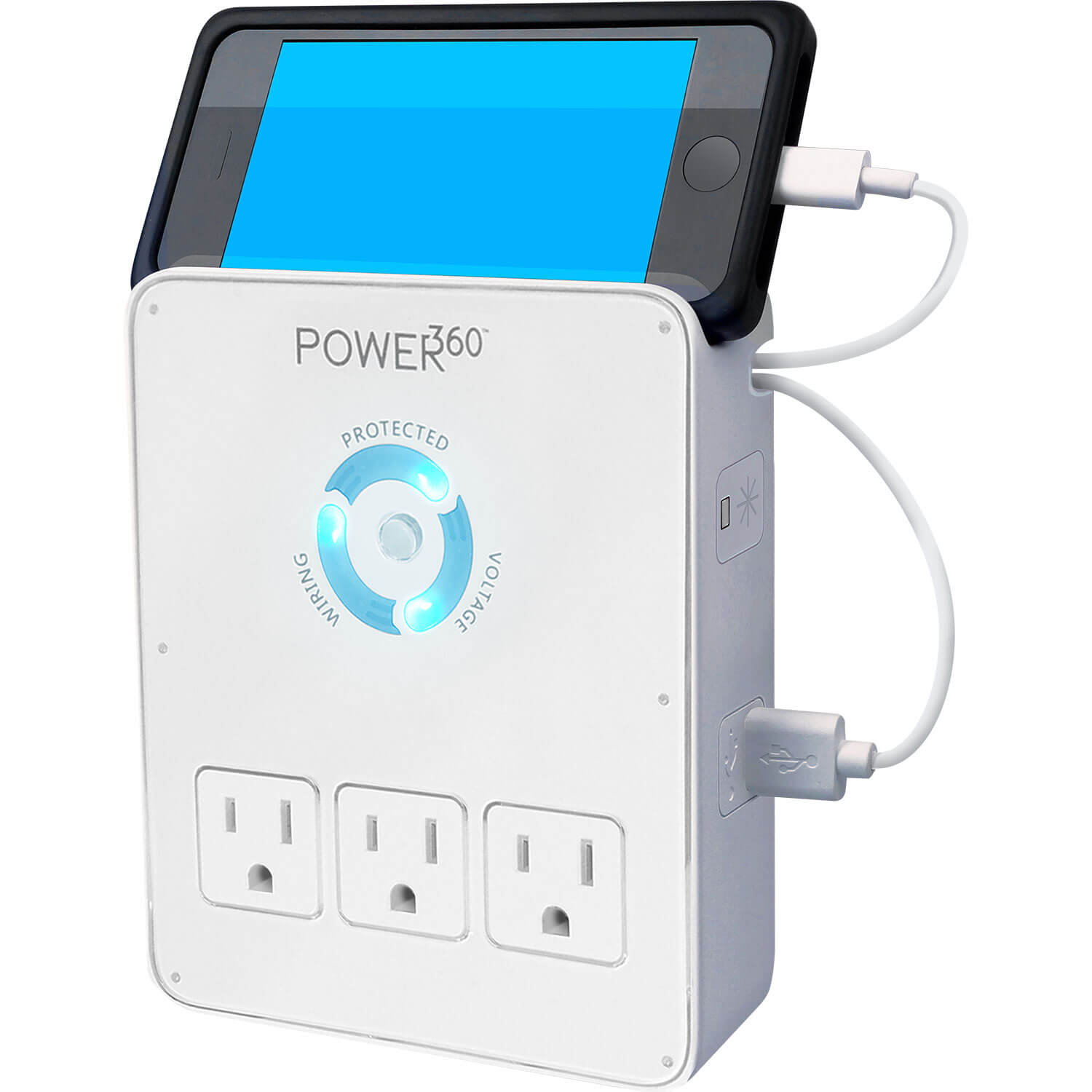

  • Charging cradle accommodates two mobile phone devices or one tablet for convenient charging
  • “Circle Of Protection” displays protection, wiring, and voltage status. May be switched off.

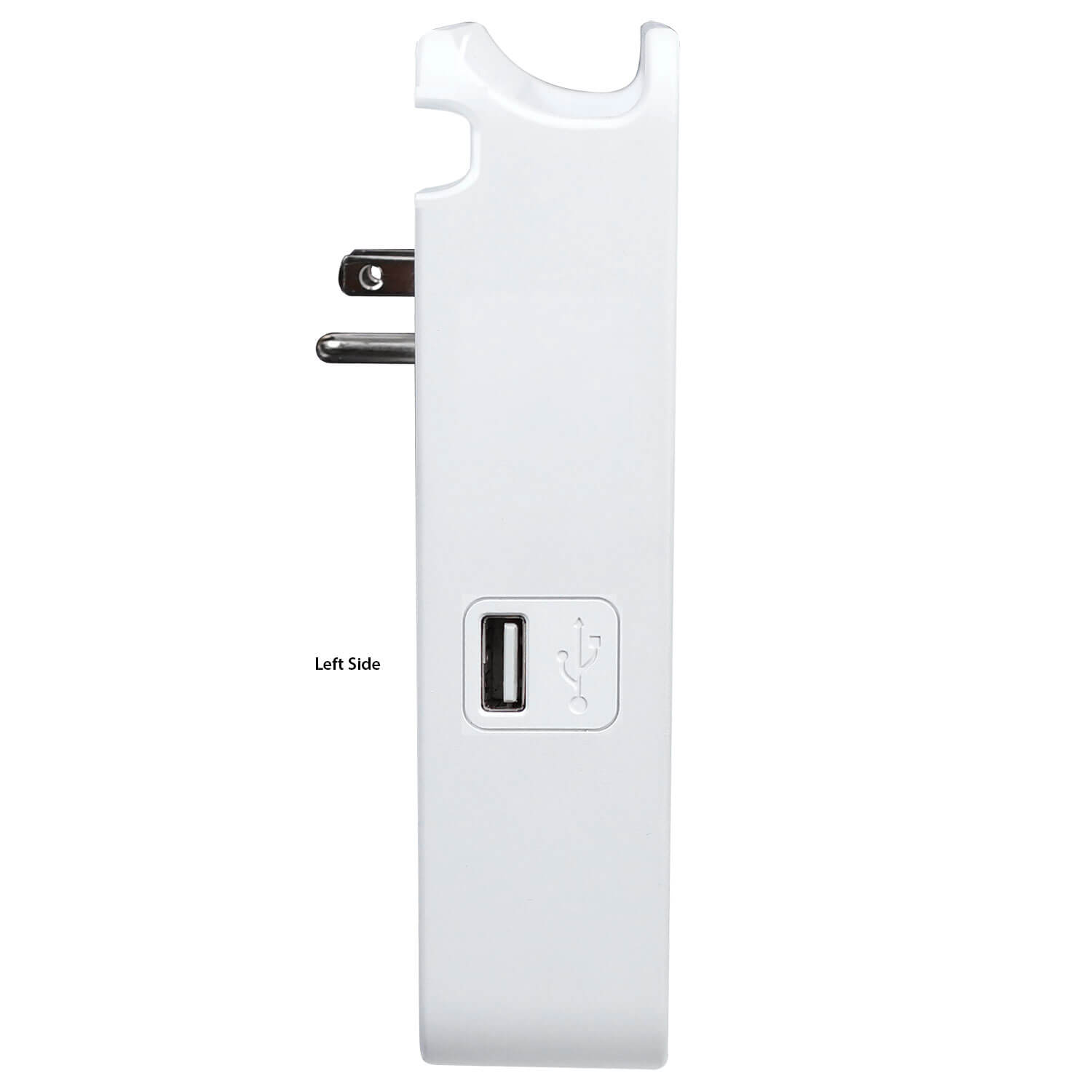

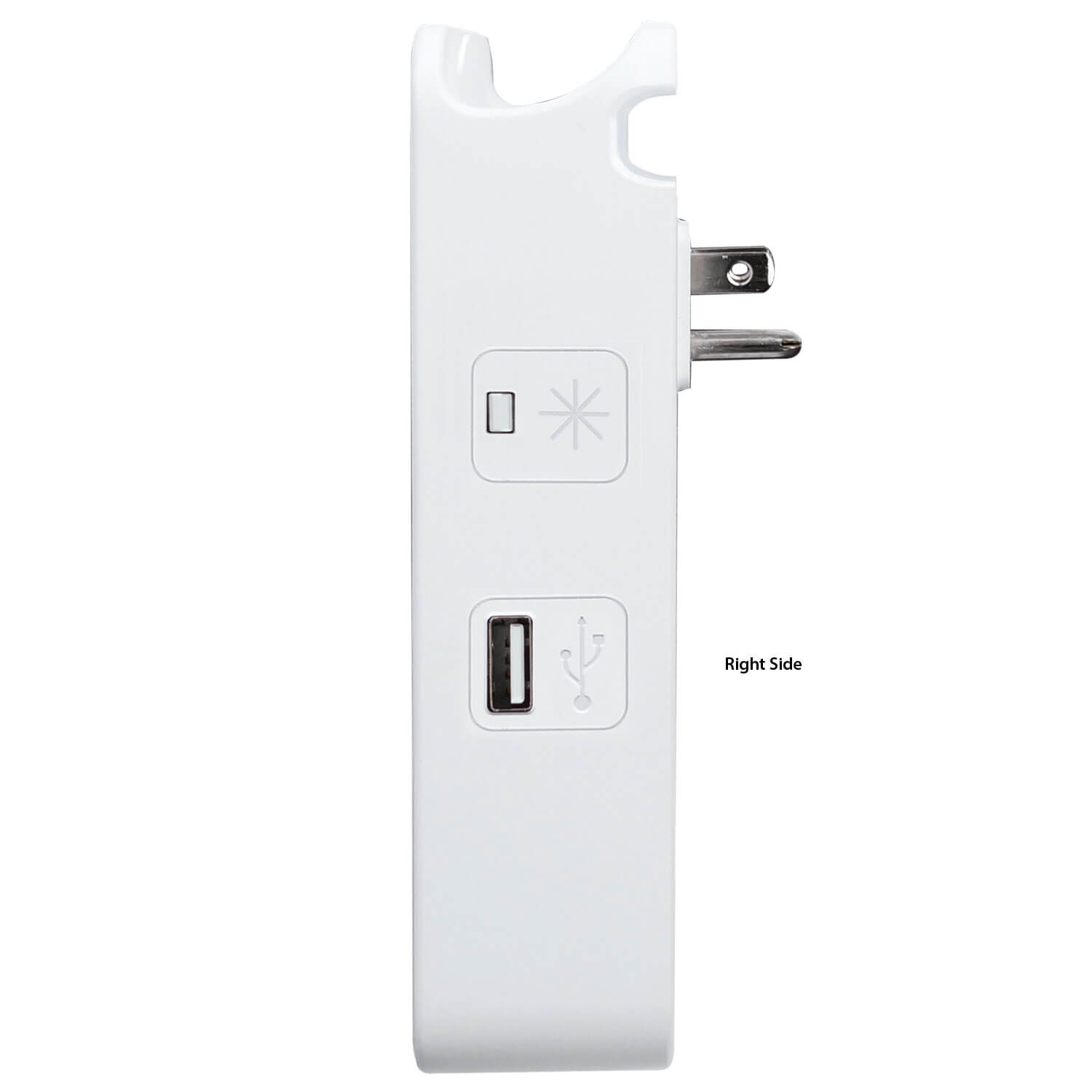

  • Two (2) high capacity USB ports
  • 6 AC outlets (3 front, 3 bottom)

Specifications

Energy Dissipation: 1080 J

USB Charging
Ports: 2 USB Type-A
Removable Modules: No
Output Voltage: 5.0VDC +/- 0.5VDC
Output Current, per port: 1 A max
Output Current, total: 2 A max

Other Specifications

General
  • Family360 Series
  • Line Voltage120 (Volts)
  • Number of Outlets6
  • Outlet DescriptionsAll 6 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • ComplianceUL 1449 VPR (pending UL) 500 V
  • USB Charging2 high capacity USB ports
  • Low Voltage TriggerN/A
  • AC Power CordN/A
AC Protection
  • AC Protection TechnologyProtect or Disconnect + Smartguard
    Active Over/Under Voltage Monitoring
    L-N, L-G, N-G Protection Modes
  • Undervoltage Shutoff95 VAC +/- 5 VAC
  • Over-Voltage Shutoff140 VAC +/- 7 VAC
  • Maximum Current Rating15 (Amps)
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Signal Line ProtectionNo
Shipping Info
  • Length5 (Inches)
  • Width2.9 (Inches)
  • Height6.2 (Inches)
  • Weight1.05 (Lbs)
  • Unit of MeasureEach
  • UPC050616009973
  • Master Pack Qty20
Proposition 65 Warning
  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Warranty

Lifetime product warranty plus $75,000 connected equipment warranty.
