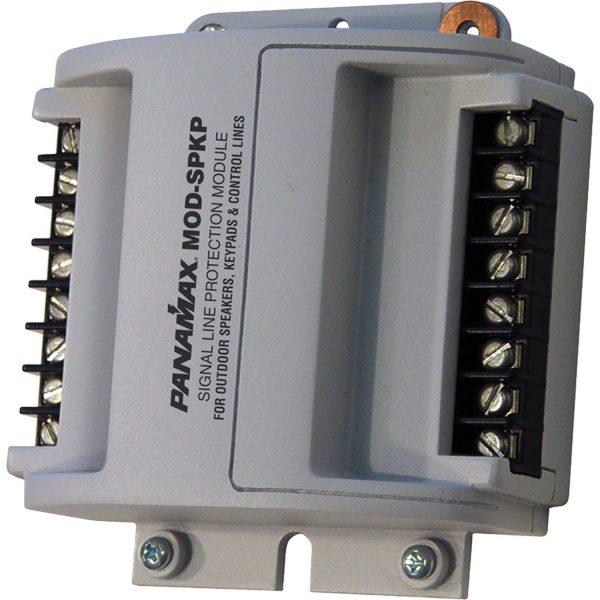

MOD-SPKP

Module, Speakers, Keypads, CCTV Power Lines

For Outdoor Speakers, Keypads and Control Lines.

Description

For Outdoor Speakers, Keypads and Control Lines

Features

Equipment lines that lead outside the building are pathways for surges (sometimes called backdoor surges) to enter the equipment. The MOD-SPKP is designed to protect outdoor speaker, keypad, control and security wires (8 wires or 4 pairs).

Specifications

Mounting Hardware Included: Yes

Protection
Wires Protected: 8
Wire Size: 12 AEG Max.
Screw Terminals: Compatible w/ 12 Gauge Wire
Power Handling Capacity for Outdoor Speakers: 225 Watts per Channel for 4 Ohm Speakers
Per Wire Capacity: 7 Amp
Modes Protected: All Terminals to Ground
Connectors: 8 Wire Screw Terminals
Clamping Level: 47V (30Vrms max to the speaker output)
112 Watts per Channel for 8 Ohm Speakers

Other Specifications

General
  • FamilySignal Protection Modules
  • Line VoltagePassive
  • Number of Outlets0
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Weight.56 lbs
AC Protection
  • Initial Clamping Level47V Peak
Filtration
  • Filtration TechnologyN/A
  • Signal Line Protection8 wires/4 pairs
Shipping Info
  • Length2 (Inches)
  • Width5.25 (Inches)
  • Height4.5 (Inches)
  • Weight0.66 (Lbs)
  • Unit of MeasureEach
  • UPC050616007757
  • Master Pack Qty24

Warranty

CONNECTED EQUIPMENT PROTECTION POLICY

These signal line protection modules do not provide a Connected Equipment Protection Policy. When properly installed with a compatible Panamax AC base unit, the base unit’s Connected Equipment Protection Policy remains valid.

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax signal line protection module, that the unit shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
