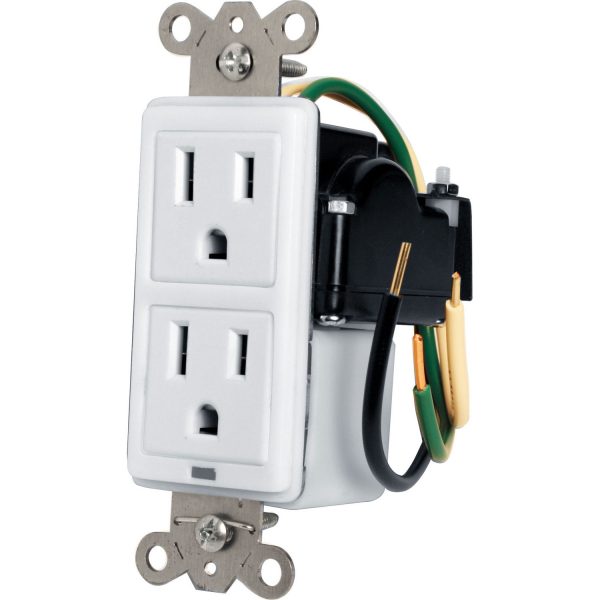

MIW-SURGE-1G

Max-In-Wall 15 Amp Duplex with Surge Protection

Two AC receptacles provide power protection to remotely located devices. Fits most standard single gang plastic or metal boxes.

Description

Two AC receptacles provide surge protection. Fits most standard single gang plastic or metal boxes.

  • Provides surge protection
  • Mounts behind electronic equipment
  • CSA Certified for code compliant installations
  • Three (3) Year Product Warranty

Features

Decora Faceplate Interface

This piece surrounds the receptacles and fits within a standard cover plates Decora cutout.

Uses standard wiring device screw-hole.

Bi-color Indicator LED.

Green = Power On
Red = Line Fault

Both Outlets with Protect-or-Disconnect Circuitry.

Specifications

UL 1449 3nd Ed. Voltage Protection Rating (@3000A): 400V
Includes: Three wire nuts, Two mounting screws (pre-installed)
Energy Dissipation: 1350 Joules

Other Specifications

General
  • FamilyIn Wall
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet Descriptions2 surge protected outlets
  • ComplianceCSA
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • Dimensions1.375" W X 2.25" D x 4.25" H
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping LevelN/A
Filtration
  • Filtration TechnologyN/A
  • Signal Line ProtectionNo
Shipping Info
  • Length4.4 (Inches)
  • Width2.5 (Inches)
  • Height2.1 (Inches)
  • Weight0.36 (Lbs)
  • Unit of MeasureEach
  • UPC050616008853
  • Master Pack Qty36

Warranty

3 YEAR PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
