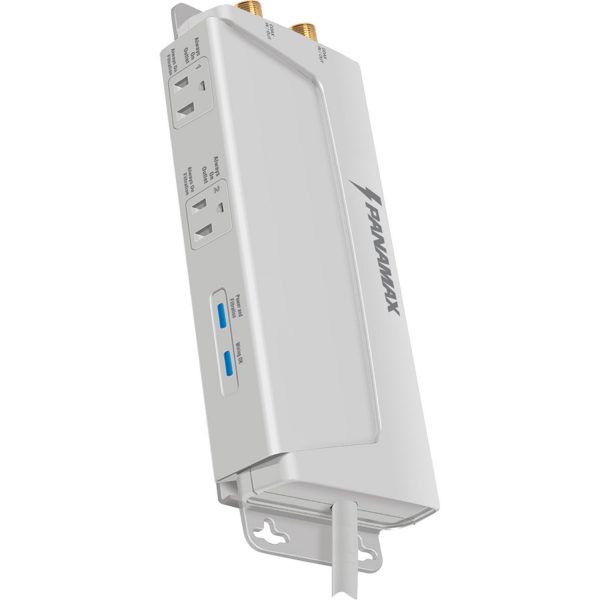

MFP300

Max Flat Panel 300

Versitile 2 Outlet Surge Protector/Power Filter with Cable/Sat Signal Protection.

Description

Improves Picture and Sound Quality

The MFP-300’s Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Surge Protection

Panamax’s exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Features

Premium Filtration Improves Picture and Sound.

Provides clean power by filtering out noise common to household power.

HD Ready

Designed to work with your High Definition system.

2 Outlets

Both outlets feature always-on filtration.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Cable/Sat. Protection

Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
UL991 Electronic Safety Circuit: Yes
Single Pulse Energy Dissipation: 1675 Joules
Response Time: < 1ns
Peak Impulse Current: 48,000 Amps

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 0MHz – 2.2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes

Other Specifications

General
  • FamilyPower Conditioners
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet DescriptionsBoth outlets filtered and surge protected
  • ComplianceUL 1449 3rd Edition, 3,000A
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord6 ft. captive cord
  • Dimensions3.75" W x 8.5" L x 1.6 in H
  • Weight2 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating12 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating43 dB @ 100kHz – 1MHz
  • Signal Line Protection1 Cable/Satellite
Shipping Info
  • Length11.5 (Inches)
  • Width9.2 (Inches)
  • Height2.1 (Inches)
  • Weight2.5 (Lbs)
  • Unit of MeasureEach
  • UPC050616008242
  • Master Pack Qty6

Warranty

$100,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to ensure warranty compliant installations.
