M8-AV-PRO

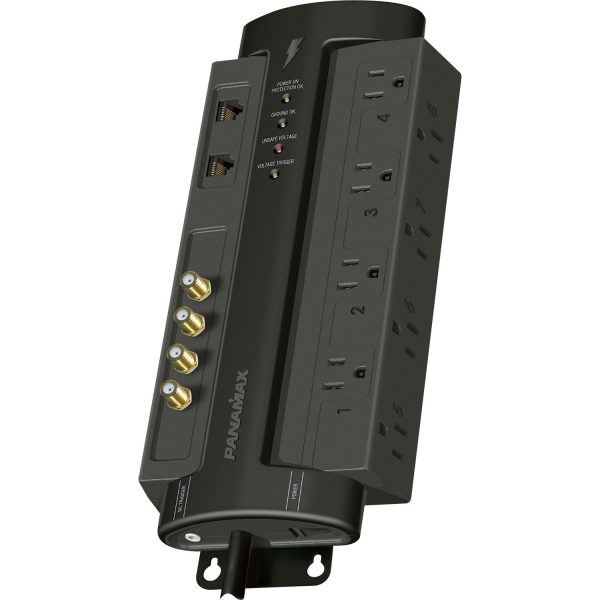

M8-AV-PRO Power Conditioner

M8-AV-PRO eliminates voltage irregularities & protects your AV system.

Description

Home Theater Power Management

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV-PRO eliminates voltage irregularities & protects your AV system.

Reduces Cross-Contamination Between Components

The M8-AV-PRO is designed to provide noise isolation between the two isolated outlet banks so that any noise created by an A/V component in one bank cannot contaminate the power to the equipment that is plugged into the other outlet bank.

Monitors Incoming Line Voltage

Panamax’s patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnected when voltage returns to a safe level, eliminating service calls or system downtime

Improves Picture and Sound Quality

The M8-AV-PRO’s Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

(Max 8 AV Pro – 8 AC; Coax and Tel; AVM, Line Filtration)

Features

Premium Filtration

Improves Picture and Sound. Provides clean power by filtering out noise common to household power.

Coax/Sat Protection

Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Telephone/LAN Line Protection

Protects equipment from electrical surges that travel over Telephone and network lines.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment

12 Volt Trigger

Allows source equipment to activate or deactivate outlets 5-8 on the M8-AV-PRO.

8 Outlets

More outlets for all of your power needs

Hi Def Ready

Hi-Def Designed to work with your High Definition system.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
UL991 Electronic Safety Circuit: Yes
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1875 Joules
Response Time: < 1n
Peak Impulse Current: 65,000 Amps
Patented Power Management Circuit: Yes

LAN Circuits
Wires Protected: Pins 1, 2, 3, & 6
Connectors: RJ-45 Shared with Telco
Connectors: Differential & Common Ground
Compatibility: 10/100bT
Clamping Level: 7V

Telco Protection
Wires Protected: 2 wire, 1 pair (4,5)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-45 Shared with LAN
Clamping Level: 260V
Capacitance: 30pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 5MHz – 2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes

Other Specifications

General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet Descriptions4 outlets filtered and surge protected
    4 surge protected high current outlets
  • ControlOn/Off control to all outlets through power switch. The high current bank can be controlled by the low voltage trigger.
  • USB ChargingN/A
  • Low Voltage Trigger12V In
  • AC Power Cord8 ft. captive cord
  • Dimensions12″ L x 5″ W x 1.75″ H (12.5″ L Including brackets)
  • Weight3.5 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage Shutoff90 VAC ± 6 VAC
  • Over-Voltage Shutoff142 VAC ± 8 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyCommon Mode Filter Circuit
  • Filtration Rating50 dB(100KHz – 1MHz)
    53 dB (100KHz – 1MHz)
  • Signal Line Protection1 LAN/Tel
    2 Cable/Satellite
Shipping Info
  • Length11.8 (Inches)
  • Width9.3 (Inches)
  • Height2.4 (Inches)
  • Weight3.45 (Lbs)
  • Unit of MeasureEach
  • UPC050616008747
  • Master Pack Qty6

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

LIFETIME LIMITED PRODUCT WARRANTY

Panamax warrants to the purchaser of any standard Panamax surge protector that the surge protector shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer. Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
