M5400-PM

Max 5400 Power Management w/ Voltage Regulation, 2RU, 11 Outlets

Regulates Voltage, Improves Picture and Sound Quality, Monitors Incoming Line Voltage, and Reduces Cross-Contamination Between Components.

Description

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

Improves Picture and Sound Quality

Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax™ patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5400-PM is designed to provide noise isolation between five isolated outlet banks including two high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.

Features

Clean Power Level 4+

Panamax PM family™ highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

High Current Outlets

2 outlets for equipment with high power demands (Amps/Subwoofers).

USB Charger

1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.

Gaming LAN Port

Easy access to LAN port on front panel. Perfect for online gaming.

5 Isolated Outlet Banks

Isolating outlet banks from one another prevents noise contamination between components.

12 Volt Trigger

Allows source equipment to activate or deactivate the switched outlets on the M5400-PM.

Power Sequencing

Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.

11 Outlets

5 Always On, 4 Switched, 2 Switched High Current.

Specifications

UL1449 Suppression Rating: 330V
Peak Impulse Current: 72,000 A
Energy Dissipation: 2125 Joules
LAN Circuits -Wires Protected: 8-Wires
LAN Circuits – Connectors: RJ-45
LAN Circuits – Compatibility: 10/100bT
LAN Circuits – Clamping Level: 52V
USB Circuit – Power Delivery: 500 mA @ 5VDC
USB Circuit – Jacks: USB-A
Telco Protection – Wires Protected: 2-Wire, Pins 4 & 5
Telco Protection – Suppression Modes: Metallic & Longitudinal
Telco Protection – Fuseless/Auto-resetting: Yes
Telco Protection – Connectors: RJ-11
Telco Protection – Clamping Level: 260V
Telco Protection – Capacitance: 30pf (approx.)
Universal Coax Protection – Shielded: Yes
Coax Protection – Insertion Loss: < 0.5 dB
Coax Protection – HD 1080 i/p Ready: Yes
Coax Protection – Frequency Range: 0 MHz – 2.2 GHz
Coax Protection – Connections: Female “F”, Gold Plated
Coax Protection – Clamping Level: 75V
Coax Protection -Bidirectional: Yes

Other Specifications

General
  • FamilyPM Series
  • Line Voltage120 (Volts)
  • Number of Outlets11
  • Number of Isolated Banks5

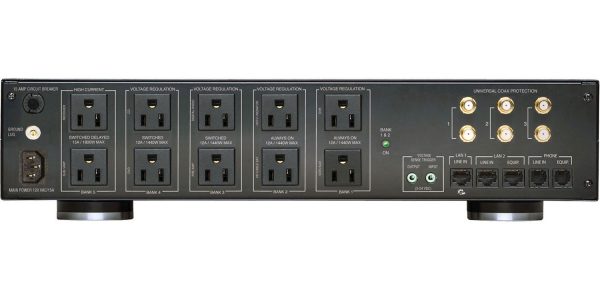

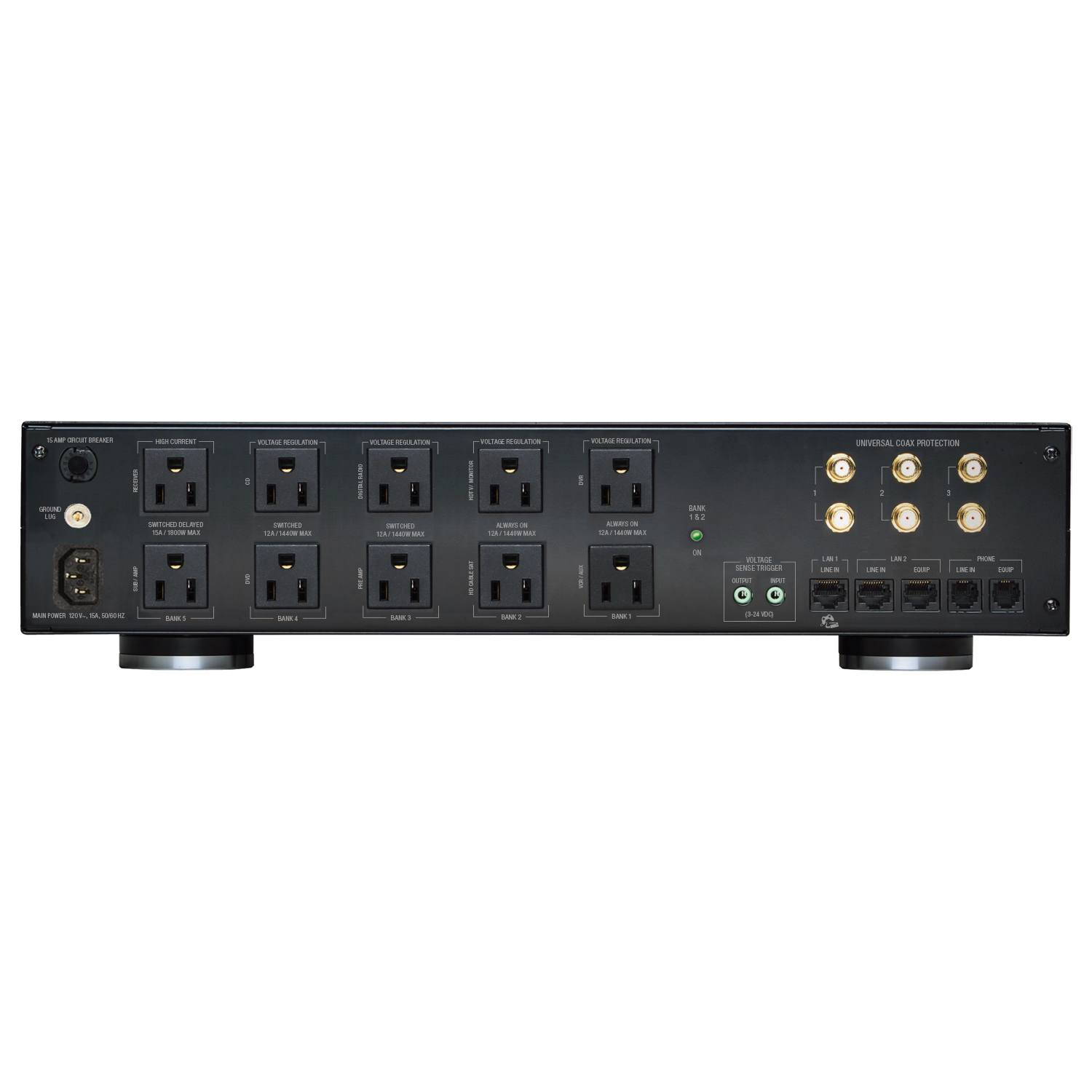

  • Outlet Descriptions

    All 11 outlets voltage regulated, filtered, and surge protected.

    Banks 1 and 2 are always on

    Bank 3 and 4 are switchable from front panel power button or 12V trigger

    Bank 5 outlets are high current and switchable from power button or 12V trigger

  • Rack MountableYes
  • Rack Ears IncludedYes

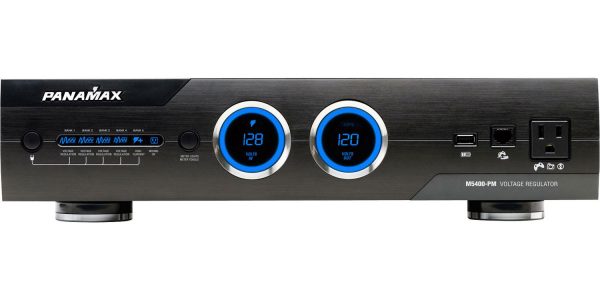

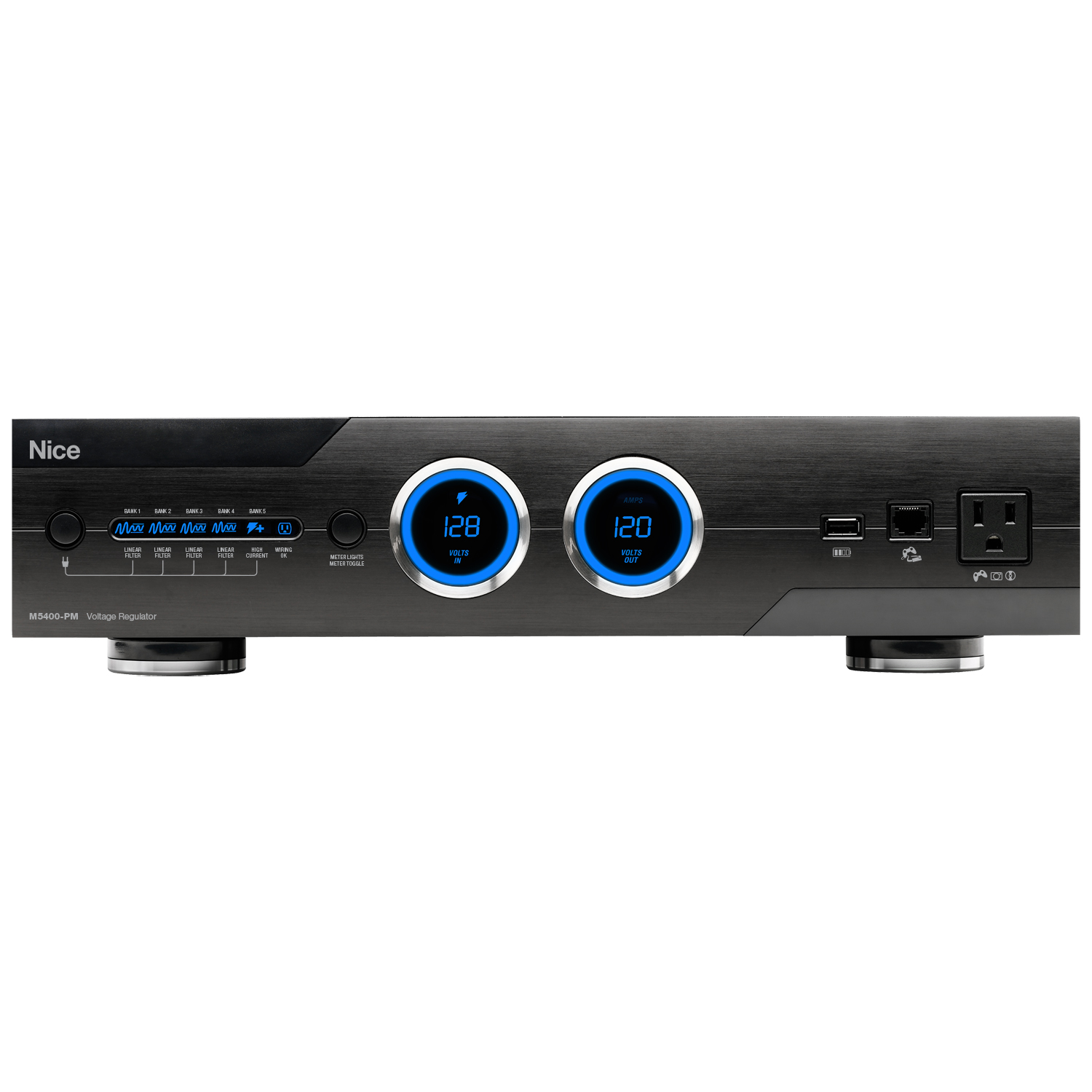

  • Front Panel Meter(s)1 voltmeter (volts in), 1 voltmeter(volts out)/ammeter combo
  • Front Media Light(s)No
  • ControlOn/Off control of switched outlets through front panel power button or rear panel DC trigger.
  • Voltage RegulationRegulation capture range:
    100VAC to 136VAC
    Output voltage range:
    120VAC ± 6 VAC
  • CompliancecCSAus
  • USB Charging1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
  • Low Voltage Trigger12 V, In/Out
  • AC Power Cord10 ft. detachable
  • Dimensions17″ W x 12.75″ D x 3.5″ H, (4.1″ Including feet)
  • Weight20 lbs
AC Protection
  • AC Protection TechnologyVoltage Regulation
    Protect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Under-Voltage Shutoff86VAC ± 6V
  • Over-Voltage Shutoff142 VAC ± 8 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyLiFT
  • Filtration Rating

    Banks 1, 2, 3, 4: 80 db (100 KHz – 2 MHz)

    Bank 5, High Current Outlets: 60 db (100 KHz – 2 MHz)

  • Signal Line Protection2 LAN, 1 Tel, 3 Cable/Satellite
Shipping Info
  • Length24 (Inches)
  • Width20.1 (Inches)
  • Height10.4 (Inches)
  • Weight24 (Lbs)
  • Unit of MeasureEach
  • UPC050616008150
  • Master Pack Qty1
Other Specifications
  • UL1449 Suppression Rating330V
  • Peak Impulse Current72,000 A
  • Energy Dissipation2125 Joules
  • LAN Circuits -Wires Protected8-Wires
  • LAN Circuits – ConnectorsRJ-45
  • LAN Circuits – Compatibility10/100bT
  • LAN Circuits – Clamping Level52V
  • USB Circuit – Power Delivery500 mA @ 5VDC
  • USB Circuit – JacksUSB-A
  • Telco Protection – Wires Protected2-Wire, Pins 4 & 5
  • Telco Protection – Suppression ModesMetallic & Longitudinal
  • Telco Protection – Fuseless/Auto-resettingYes
  • Telco Protection – ConnectorsRJ-11
  • Telco Protection – Clamping Level260V
  • Telco Protection – Capacitance30pf (approx.)
  • Universal Coax Protection – ShieldedYes
  • Coax Protection – Insertion Loss < 0.5 dB
  • Coax Protection – HD 1080 i/p ReadyYes
  • Coax Protection – Frequency Range0 MHz – 2.2 GHz
  • Coax Protection – ConnectionsFemale “F”, Gold Plated
  • Coax Protection – Clamping Level75V
  • Coax Protection -BidirectionalYes
Proposition 65 Warning
  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Warranty

$5,000,000 LIFETIME LIMITED CONNECTED EQUIPMENT PROTECTION POLICY

3 YEAR PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to ensure warranty compliant installations.
