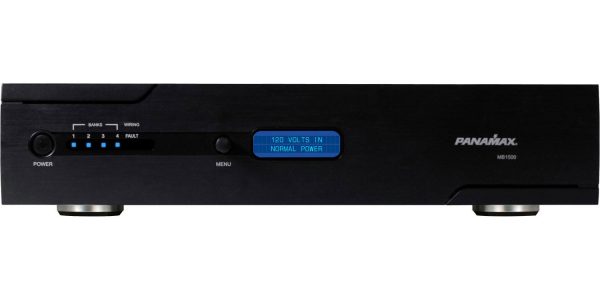

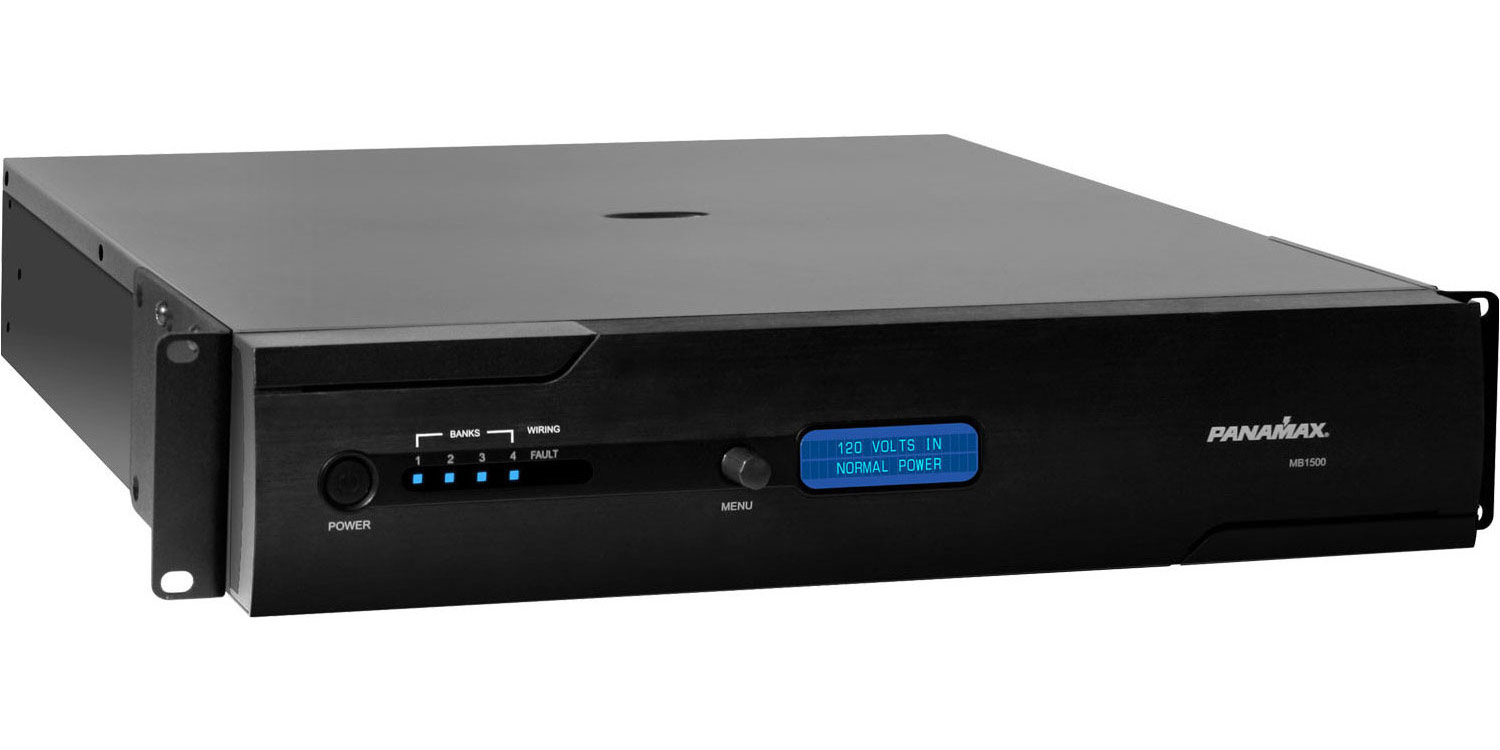

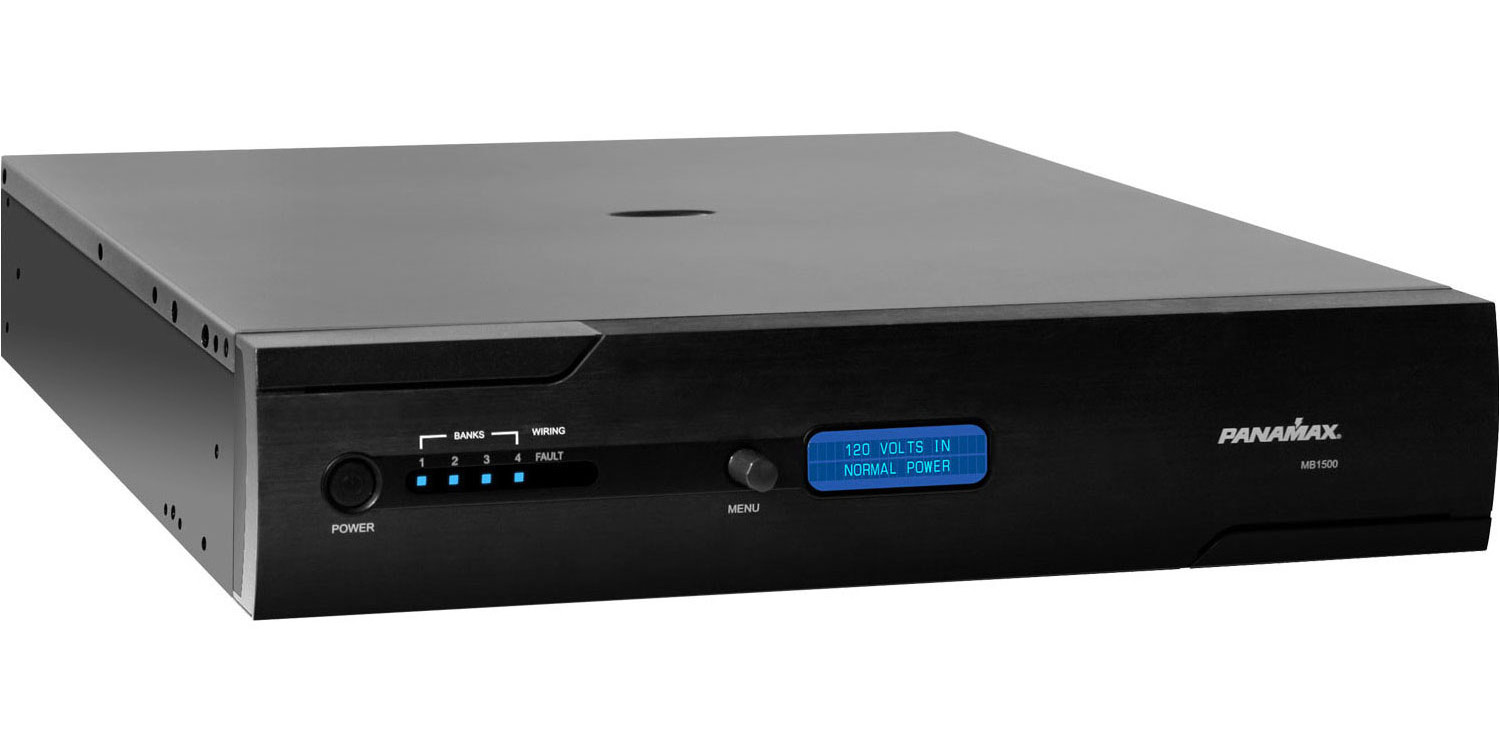

MB1500

1500VA Rack Mount UPS

1500VA, Fully Programmable, Uninterruptible Power Supply, Voltage Regulator & Power Conditioner

Description

Combines Power Management, Voltage Regulation, and Surge Protection with AVM and Battery Backup to provide the complete solution.

MB1500 prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. Shuts off projection equipment via IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off.

Features

  • 1500 VA Rated Battery Backup
  • True Sine Wave Output
  • AVM Automatic Voltage Monitoring
  • LiFT Linear Filtering Technology Noise Filtration
  • Protect or Disconnect Voltage Protection
  • Voltage Regulation
  • Dual Learning IR Output Controls
  • USB Interface
  • RS-232 with Open Source Protocol
  • Fully Programmable

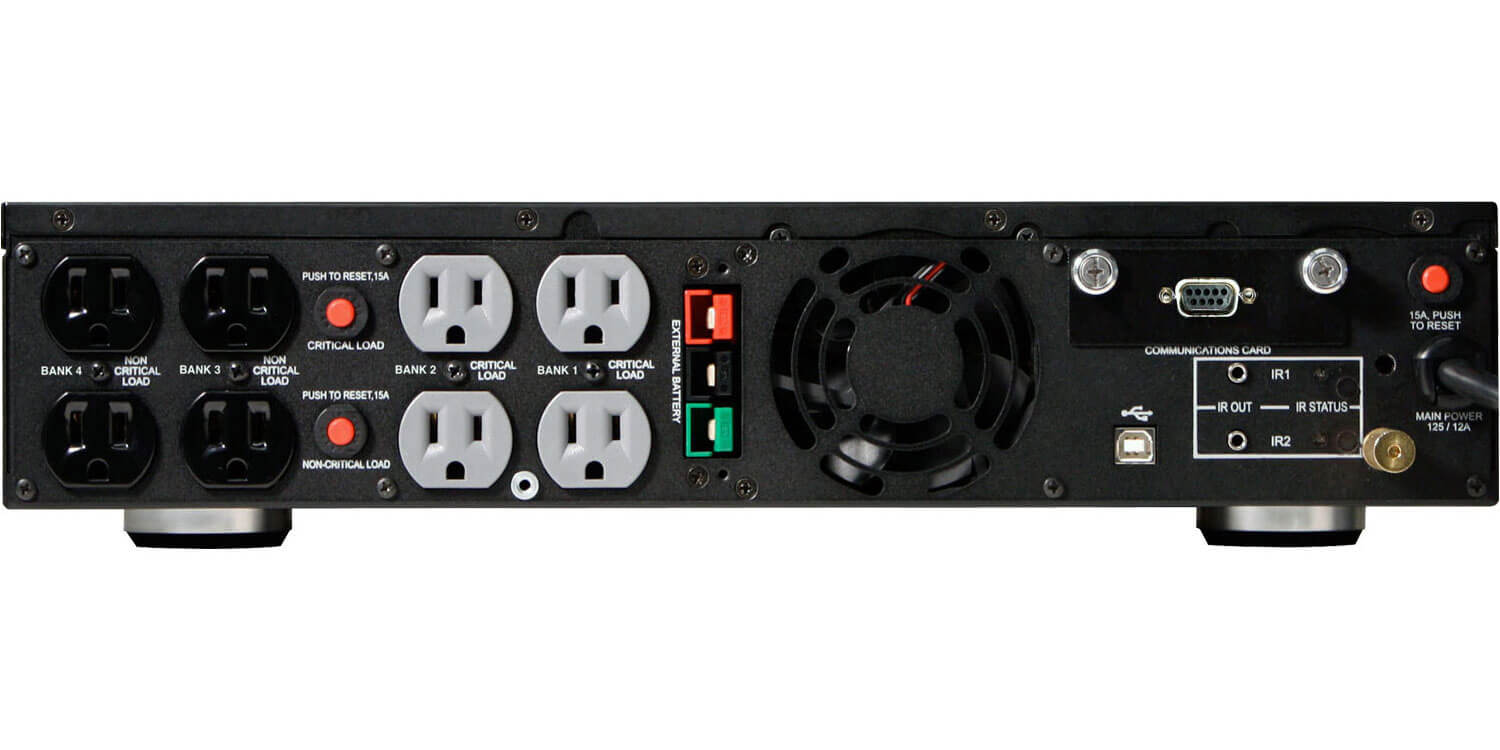

  • Four Programmable Critical Load Management AC Outlet Groups
  • IP Card Module for Remote Control Via Internet (BlueBOLT™ Sold Separately)
  • Battery Extension Pack Available To Extend Runtme (BATT1500-EXT Sold Separately)

Specifications

Linear Attenuation Curve:: From 0.05-100 Ohms line impedance

Other Specifications

General
  • FamilyRack Mount
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Number of Isolated Banks2
  • Outlet DescriptionsAll 8 outlets surge protected, linearly filtered, and backed up
  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)LCD Displays status and menu navigation items
  • Front Media Light(s)No
  • ControlRemote control through RS-232 interface card or via internet with BlueBOLT-CV1 card (sold separately)
  • AC Power CordHeavy duty captive power cord
  • Dimensions17″ W (19″ w/ rack ears) x 19.2″ D x 3.5″ H (4″ tall with feet installed)
  • Weight72 lbs.
Battery Backup
  • Input Frequency47 – 63 Hz
  • Regulation Capture Range96 – 135V (Sensitive Mode)

    93 – 142V (Standard Mode)
  • Output Frequency60 Hz ± 1%
  • UPS Output Capacity1500VA, 900W @ 0.6pf
  • Regulation Output Range120V ± 5% (Sensitive Mode)
    120V ± 10% (Standard Mode)
  • UPS Backup Time (Full Load)12 minutes
  • UPS Backup Time (Half Load)32 minutes
  • Transfer Time < 4ms
AC Protection
  • AC Protection TechnologyNon-sacrificial SMP (Series Multi-Stage Protection)
  • Over-Voltage Shutoff150V ± 5V (fast rise)
    140 ± 5V (slow rise)
  • Maximum Current Rating12 (Amps)
Filtration
  • Filtration TechnologyLinear Filtering Technology (LiFT)
  • Filtration Rating10 dB @ 10kHz
    40 dB @ 100 kHz
    50 dB @ 500kHz
Shipping Info
  • Length27 (Inches)
  • Width22.5 (Inches)
  • Height11 (Inches)
  • Weight85 (Lbs)
  • Unit of MeasureEach
  • UPC050616008525
  • Master Pack Qty24

Warranty

3 Year Product Warranty

Panamax warrants to the purchaser of this Panamax audio/video component style uninterruptible power supply, for a period of three (3) years from the date of purchase, that the unit shall be free of defects in design, material, or workmanship, and Panamax will repair or replace any defective unit.

2 Year Battery Warranty

Panamax warrants to the purchaser of this uninterruptible power supply, for a period of two (2) years from the date of purchase, that the batteries shall be free of defects in design, material, or workmanship, and Panamax will replace any defective battery.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax audio video products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Audio Video Internet Dealers have sufficient expertise to insure warranty compliant installations.
