VT1512-IP

VT1512-IP Power Management

Vertical strip style power distribution unit (PDU) / surge protector with local area network and BlueBOLT cloud control

Description

The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power
sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for
maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows
remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set
alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud
applications the VT1512-IP has an embedded webpage for control and programming, or you can use a
LAN for secure control via an ELAN or other 3rd party control systems.

Watch this video to learn more about the VT1512-IP

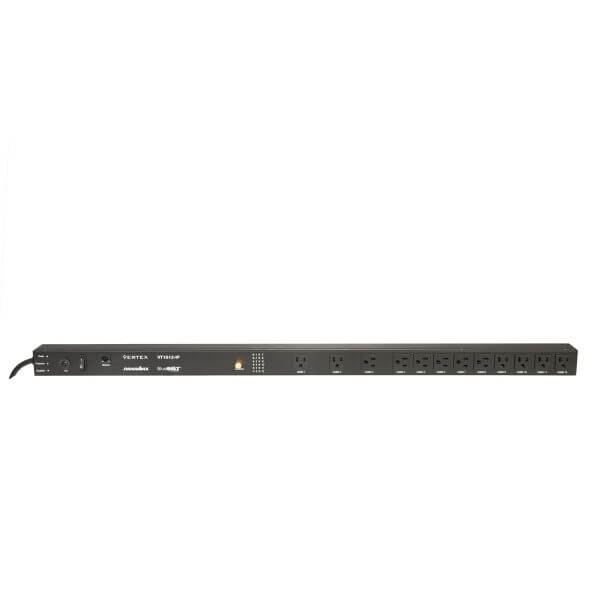

See below detailed view of the VT1512-IP

VT1512-IP

Features

  • Protect-or-Disconnect surge protection
  • Standard EMI/RFI Filtration
  • Over/Under voltage load disconnect
  • Power Sequencing
  • IP Monitor & Control – BlueBOLT™ enabled for IP control and monitoring
  • 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
  • Ground lug to attach Panamax signal-line protection modules

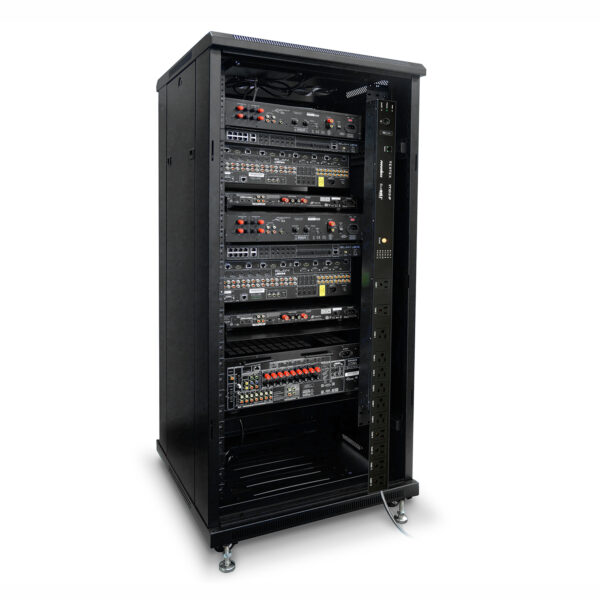

  • Sleek design ideal for vertical mounting to an equipment rack with included brackets
  • 10 foot power cord with removable plug to customize length
  • 15A Capacity with circuit breaker
  • 3 year limited product warranty
  • $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.

BlueBOLTProvides Web Based Remote Power Management to Monitor and Control Your System – From Anywhere, 24/7.

Specifications

AC Power: 120Vac, 50/60Hz
Total Outlets: 12
Total Current Capacity: 15A (1800W)
Voltage Protection Rating (UL 1449 4th Edition, 3,000A): L-N 500V, L-G 500V, N-G 500V
Protection Modes: L-N, L-G, N-G
Initial Clamping Level: 200 V Peak, 141 RMS
Energy Dissipation: 668 Joules
Peak Impulse Current: 12,000
Protect-or-Disconnect: Yes
Thermal Fusing: Yes
Cord Length: Captive 10ft. cord with removable NEMA 5-15P for length customization
Dimensions: 37” L x 1.75” W x 1.75” H

Other Specifications

Warranty

3 year limited product warranty

$5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.
