VT-EXT

Vertex, 8 Outlets (3 Wall Wart Spaced) Vertical Power Distribution

All Vertex models can be used as stand alone PDU’s (Power Distribution Units)
or you can plug them into other power management devices to add extra
outlets with a vertical configuration. When plugged into any Panamax or
Furman power management product the Vertex will share all of the same
AC line protection and AC line filtering.

Description

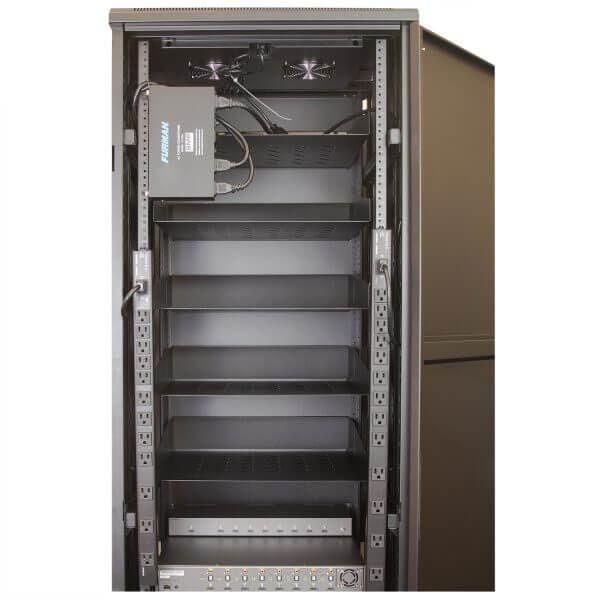

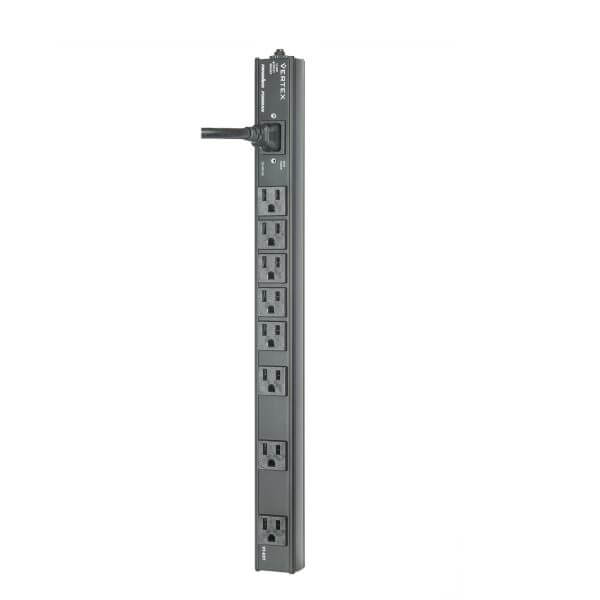

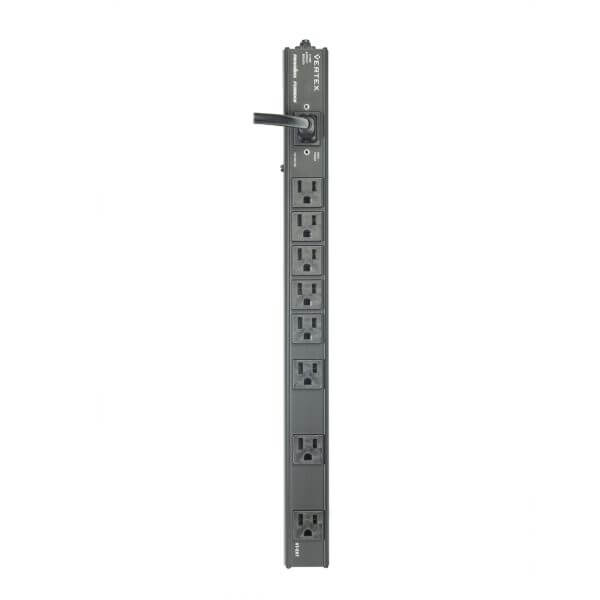

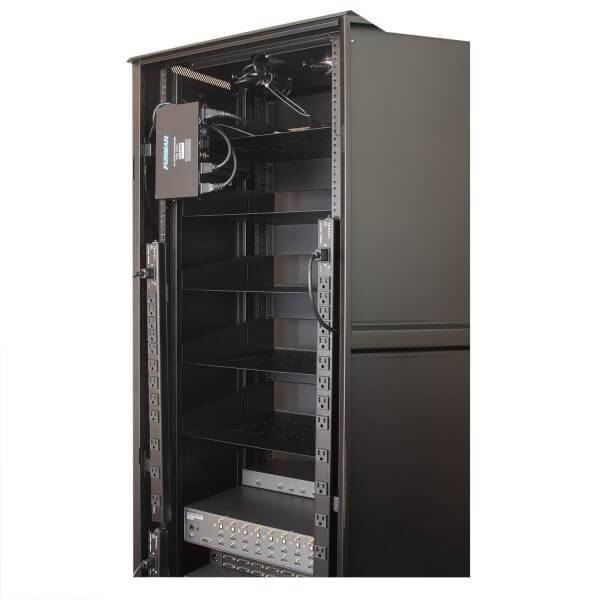

8 outlet power strip designed specifically to be mounted to the vertical leg section of an equipment rack. This is the perfect way to extend the protection and filtration from an existing Panamax or Furman power conditioner.

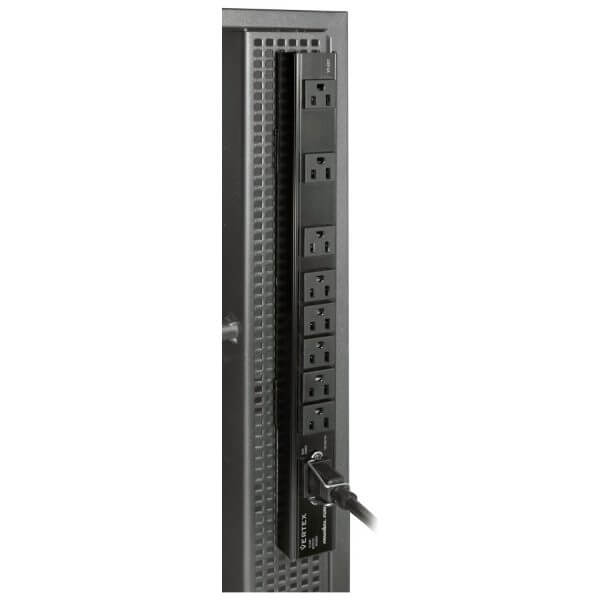

Simply attach mounting clips in desired location for an easy installation. Snap the VT-EXT into clips for a sturdy and secure fit and plug into a Panamax/Furman power conditioner. The plastic spacers in clips provide ground isolation from the rack.

Features

  • 8 AC outlets, 3 with transformer spacing.
  • Heavy duty detachable 10 foot, 14 AWG power cord with security retention bracket.
  • 12 amp re-settable circuit breaker.
  • Ground isolation from equipment rack provided by plastic spacers in mounting clip hardware.
  • One (1) year limited product warranty.

Other Specifications

General
  • FamilyPower Distribution
  • Line Voltage120 (Volts)
  • Number of Outlets8
  • Outlet Descriptions8 power distribution outlets. No filtration or power protection.
  • CompliancecULus
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord10 ft. captive cord
  • Dimensions1.5in W X 18" L x 1.5" H
  • Weight0.78 lbs
AC Protection
  • AC Protection TechnologyN/A
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating12 (Amps)
  • Initial Clamping LevelN/A
Filtration
  • Filtration TechnologyN/A
  • Signal Line ProtectionNo
Shipping Info
  • Length21.5 (Inches)
  • Width3.75 (Inches)
  • Height2.75 (Inches)
  • Weight2.3 (Lbs)
  • Unit of MeasureEach
  • UPC050616008969
  • Master Pack Qty10

Warranty

1 Year Limited
