M4315-PRO

BlueBOLT-Controllable Power Conditioner – 8 Outlets

Advanced 15 amp power controller with top of the line Linear Noise Filtration, Automatic Voltage Monitoring and catastrophic surge protection.

Description

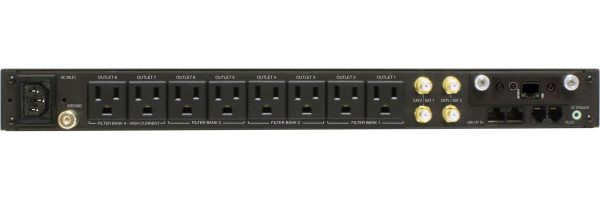

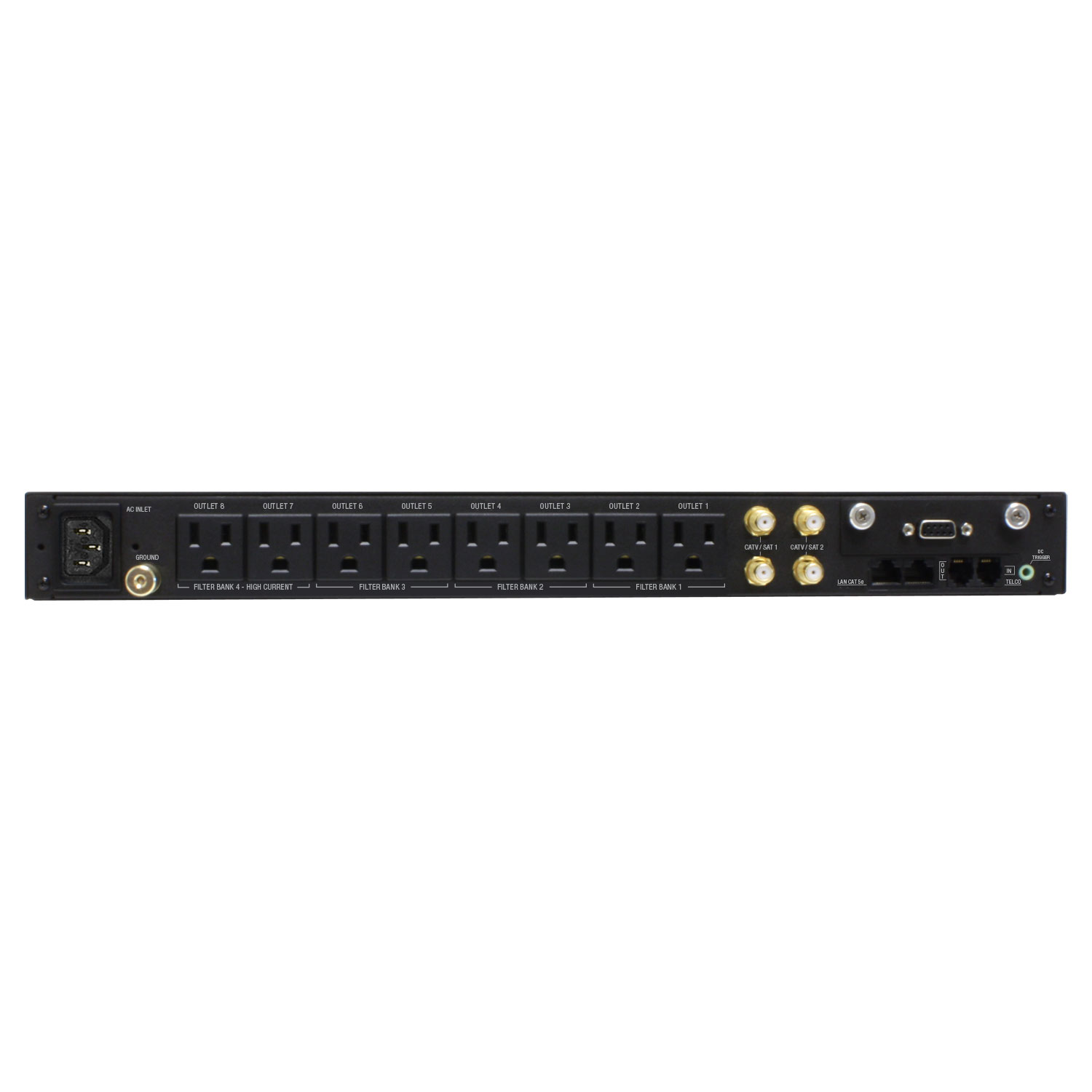

The M4315-PRO features Panamax’s revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all eight (8) rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4315-PRO.

1 RU 15 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord

If you are looking for a vertically mounted solution, try the VT1512-IP.

Features

Power Management with Control System Interactive Functionality.

  • 15 Amp Capacity M4315-PRO
  • 8 Individually Controllable Rear Panel Outlets
  • Fully Programmable
  • TCP/IP (BlueBOLT™) Installed
  • Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
  • One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
  • Front Panel Circuit Breaker
  • Removable Front Rack Ears
  • 12 Volt Input Triggering
  • Detachable 10 ft. Power Cord
  • AVM & Protect-or-Disconnect Circuitry

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Single Pulse Energy Dissipation: 2700 Joules
Peak Impulse Current: 135,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100/1000 BASE-T
LAN – Clamping Level: 60 ± 5V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes

Other Specifications

General
  • FamilyPro Series
  • Line Voltage120 (Volts)
  • Number of Outlets9
  • Number of Isolated Banks4
  • Outlet Descriptions

    1 (always on, linearly filtered outlet, front panel)

    6 (individually switchable, linearly filtered outlets)

    2 (individually switchable, high current outlets)

  • Rack MountableYes
  • Rack Ears IncludedYes

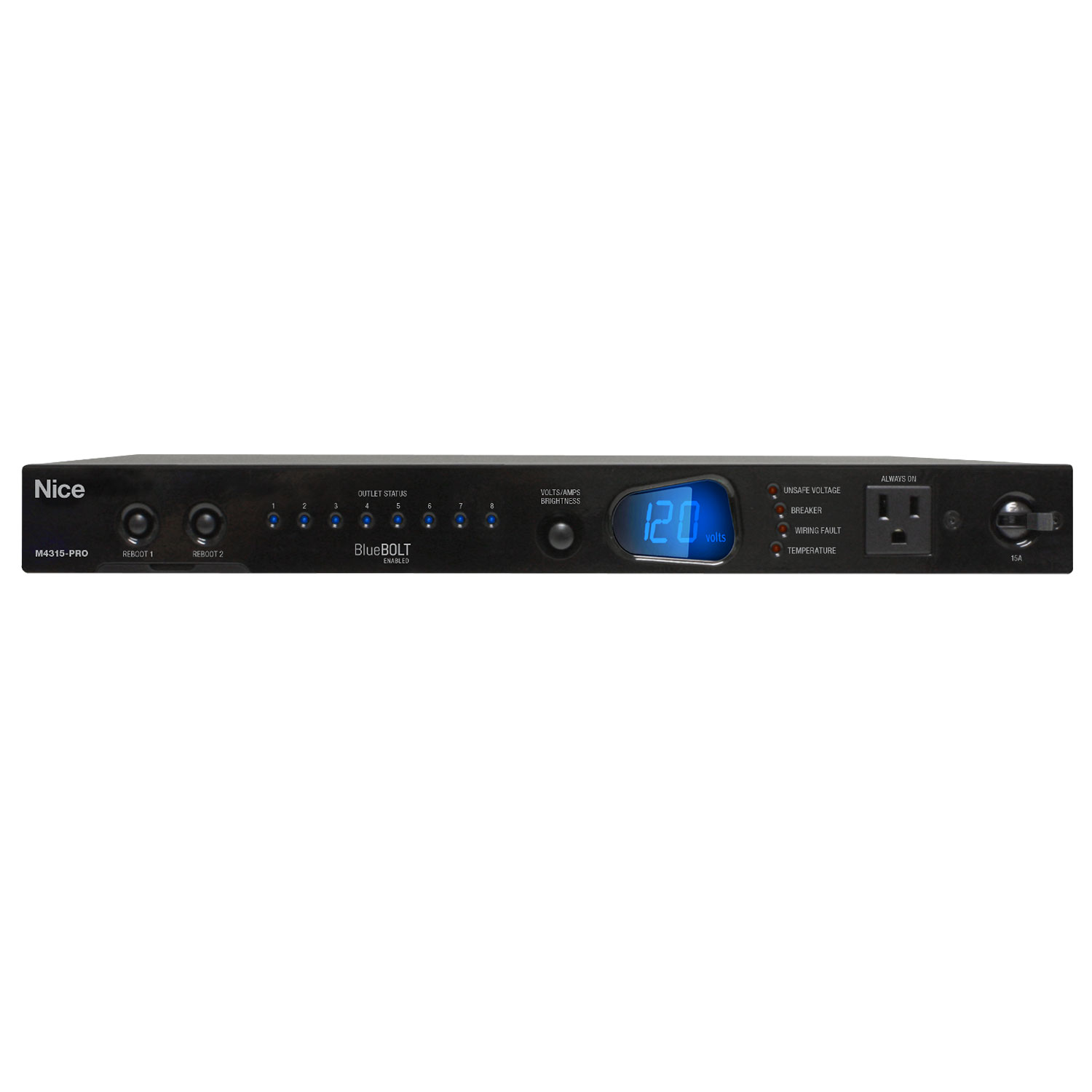

  • Front Panel Meter(s)Volts/Amps Combo Meter
  • Front Media Light(s)No
  • ControlFull outlet control using BlueBOLT or Telnet commands. Limited outlet control through front panel buttons or rear panel DC trigger.
  • Voltage RegulationNo
  • CompliancecCSAus
  • USB ChargingN/A
  • Low Voltage Trigger12V In
  • AC Power Cord10 ft. detachable
  • Dimensions19″ W (17″ without rack ears) x 12.25″ D x 1.75″ H
  • Weight12 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Under-Voltage Shutoff100 VAC ± 2 VAC
  • Over-Voltage Shutoff134 VAC ± 2 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyLiFT
  • Filtration Rating

    Banks 1, 2, 3: 76db, 5KHz – 250 kHz

    Bank 4 High Current Outlets: 46 db, 250 KHz – 1 Mhz

  • Signal Line Protection1 LAN
    1 Tel
    2 Cable/Satellite
Shipping Info
  • Length19.8 (Inches)
  • Width4.6 (Inches)
  • Height21.2 (Inches)
  • Weight16.7 (Lbs)
  • Unit of MeasureEach
  • UPC050616008594
  • Master Pack Qty2
Other Specifications
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)500V
  • Single Pulse Energy Dissipation2700 Joules
  • Peak Impulse Current135,000 Amps
  • LAN – Wires Protected8-Wires
  • LAN – Compatibility10/100/1000 BASE-T
  • LAN – Clamping Level60 ± 5V
  • Coax – ShieldedYes
  • Coax – Insertion Loss < 0.5 dB
  • Coax – HD 1080 i/p ReadyYes
  • Coax – Frequency Range0 MHz – 2.2 GHz
  • Coax – ConnectionsFemale “F”, Gold Plated
  • Coax – Clamping Level75V
  • Coax – BidirectionalYes
Proposition 65 Warning
  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Warranty

3 YEAR PRODUCT WARRANTY

Panamax warrants to the purchaser of this Panamax audio/video component style power conditioner, for a period of three (3) years from the date of purchase, that the unit shall be free of any defects in design, material or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

WARRANTY LIMITATION FOR INTERNET PURCHASERS:

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
